Heat Exchanger Boiler Seamless Cold Drawn Steel Tube High Pressure ASTM A192

Heat Exchanger Boiler Seamless Cold Drawn Steel Tube High Pressure ASTM A192

  • High Light

    cold drawn welded tubes

    ,

    seamless galvanized steel pipe

  • Standard
    ASTM, SA192
  • Standard2
    ASTM A179-1990
  • Grade Group
    A53-A369
  • Grade
    A192
  • Thickness
    1 - 25.4 Mm
  • Section Shape
    Round
  • Outer Diameter(Round)
    12.7 - 177.8 Mm
  • Secondary Or Not
    Non-secondary
  • Application
    Boiler Pipe
  • Technique
    Cold Drawn
  • Surface Treatment
    Oil
  • Special Pipe
    Heat Exchanger Boiler Tubes
  • Alloy Or Not
    Non-alloy
  • Product Name
    Carbon Steel ASTM A192 High Pressure Heat Exchanger Boiler Tubes
  • Material
    SA192
  • Surface
    Oil
  • Type
    SMLS
  • Shape
    Circular
  • Length
    1-12m
  • Usage
    Heat Exchanger& Boiler
  • Keyword
    SA192 Boiler Tubes
  • End Protector
    Plain
  • Place of Origin
    Zhejiang, China (Mainland)
  • Certification
    ISO 9001 ISO14001 TS16949
  • Minimum Order Quantity
    negotiable
  • Price
    negotiable

Heat Exchanger Boiler Seamless Cold Drawn Steel Tube High Pressure ASTM A192





Cold drawn Seamless Carbon Steel ASTM A192 High Pressure Heat Exchanger Boiler Tubes



ASTM A192 Seamless carbon steel boiler tubes for high pressure service
Seamless Carbon Steel Boiler Tubes for High-Pressure Service

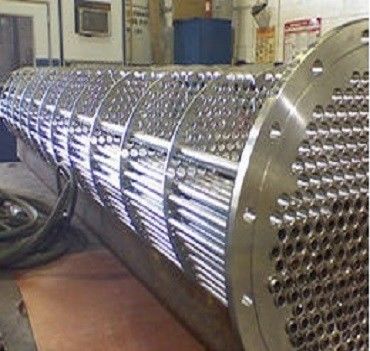

Applications:
for Boilers,Superheaters,
Heat-Exchangers,
High-pressure Boilers,
Steam Boilers
Cold Condensers and High-Pressure Services,
High-Temperature Services for Boiler Constructions


Size range: O.D.:12.7-177.8mm W.T.:1-25.4mm L: according to customer requirement
Manufacture:
Tubes are manufactured by seamless process and both hot finished and cold finished are applicable.
Heat treatment:
Hot finished tubes need not be heat treated.
Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher





Steel grade SA179 Chemical Composition & Mechanical properties

Mn
P
S
Si
Tensile Strength
Yeild point
Elongation
0.06-0.18
0.27-0.63
0.035Max
0.035Max
0.25Max
min ksi[Mpa] 47[325]
 min ksi[Mpa] 26[180]
≥35%

Hardness

Brinell Hardness
Rockwell Hardness Number
 WT≥0.200in(5.1mm)
 WT<0.200in(5.1mm)
137HRB
77HRB

Tolerance for OD and WT(SA-450/SA-450M)

OD in(mm)
+
-
WT in(mm)
+
-
<1''(25.4)
0.10
0.10
≤1.1/2''(38.1)
20%
0
1''~1.1''(25.4~38.1)
0.15
0.15
>1.1/2''(38.2)
22%
0
>1.1/2''~<2''(38.1~50.8
0.20
0.20



2''~<2.1/2''(50.8~63.5)
0.25
0.25



2.1/2''~<3''(63.5~76.2)
0.30
0.30



3''~<4''(76.2~101.6)
0.38
0.38



4''~<7.1/2''(101.6~190.5)
0.38
0.64



>7.1/2~9''(190.5~228.6)
0.38
1.14




Mechanical Testing:
Flattening Test
Flaring Test
Flange Test
Hardness Test
Hydrostatic Test

Our Company


Heat Exchanger Boiler Seamless Cold Drawn Steel Tube High Pressure ASTM A192 0

Heat Exchanger Boiler Seamless Cold Drawn Steel Tube High Pressure ASTM A192 1
Packing & Delivery

Packing Details  : In bundles or in wooden boxes packaging

Delivery Details : 30-60days

Heat Exchanger Boiler Seamless Cold Drawn Steel Tube High Pressure ASTM A192 2
Heat Exchanger Boiler Seamless Cold Drawn Steel Tube High Pressure ASTM A192 3

In hexagonal bundles packaging with woven

In hexagonal shaps,the tubes will be well fixed,so it can avoid the damages when delievey .


In wooden boxes.

Solid packaging ,protecting tubes from damages much better.




Heat Exchanger Boiler Seamless Cold Drawn Steel Tube High Pressure ASTM A192 4
In poywooden packaging,It cut the packaging costs also it can protect tubes well

In bundles with end caps.well protect tubes from rust.

Carton Packing suit for the cutting length



QUALITY CONTROL

1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking.



100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.




Impact Testing

Tensile Strength Testing

Chemical Composition Testing

FAQ

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample of Cold drawn Seamless Carbon Steel ASTM A192 High Pressure Heat Exchanger Boiler Tubes  for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
