In the world of modern manufacturing, precision and efficiency are paramount. CNC (Computer Numerical Control) machining has revolutionized the production of intricate and accurate parts for various industries. This article delves into the realm of CNC turning parts, CNC machining parts, and stainless steel precision casting parts, exploring their material composition, drawing formats, production processes, surface roughness, treatment, inspection instruments, and applications in the automotive industry.
CNC turning parts, CNC machining parts, and stainless steel precision casting parts are primarily fabricated using stainless steel, an alloy known for its exceptional strength, corrosion resistance, and versatility. Stainless steel allows for the creation of high-quality components that can withstand harsh conditions and maintain their integrity over time.
The manufacturing process of these parts begins with the creation of detailed engineering drawings. These drawings serve as blueprints for the CNC machines and guide them in precisely shaping the raw materials. The industry-standard drawing format for these parts is often in CAD (Computer-Aided Design) format, which provides precise dimensions, tolerances, and geometric information required for the machining process.
Material Selection: The process commences with selecting the appropriate stainless steel material suitable for the specific application and performance requirements.
Setup: The chosen material is securely fixed on the lathe's chuck, ready for precision turning.
Turning: The CNC lathe rotates the workpiece while cutting tools remove excess material, forming the desired shape.
Finishing: Secondary operations may be employed to achieve the required surface finish and dimensional accuracy.
Material Selection: Stainless steel of the desired grade is carefully chosen to match the part's intended function.
CNC Programming: Skilled technicians program the CNC machines, instructing them on the exact toolpaths and movements required to create the intricate shapes.
Machining: The CNC machine then performs the cutting, drilling, milling, and other processes as dictated by the programmed instructions.
Deburring and Finishing: After machining, the parts undergo deburring to remove sharp edges, followed by any necessary finishing processes to enhance aesthetics and functionality.
Pattern Creation: A pattern or model of the desired part is made from various materials like wood, metal, or wax.
Mold Creation: The pattern is encased in a mold material, which may be sand, ceramic, or plaster.
Casting: Molten stainless steel is poured into the mold, taking the shape of the pattern.
Cooling and Removal: The casting solidifies and is removed from the mold, ready for further processing.
Finishing: The cast part undergoes finishing processes to achieve the desired surface quality and dimensions.
Surface roughness is a critical factor that impacts the performance and aesthetics of CNC turned, machined, and precision cast parts. Depending on the application, different surface finishes can be applied, such as polishing, grinding, anodizing, or coating, to achieve the desired appearance and functionality.
Ensuring the quality of CNC turning parts, CNC machining parts, and stainless steel precision casting parts requires precise inspection instruments. Commonly used tools include coordinate measuring machines (CMMs), calipers, micrometers, surface roughness testers, and optical comparators. These instruments help manufacturers verify dimensional accuracy and surface quality.

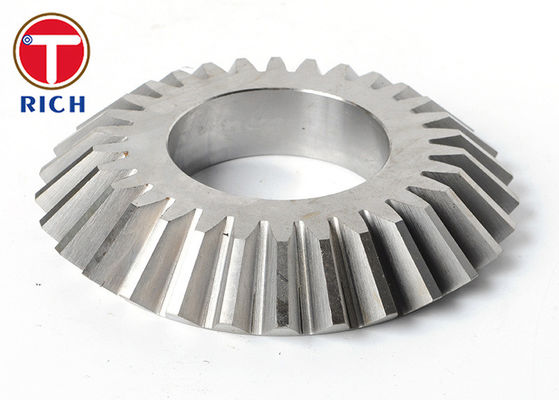

| Product name | Stainless Steel Precision Casting Parts CNC Turning Parts For Processing Auto Parts | |
| Production Equipment | CNC, Milling Machine Processing, CNC Lathe Processing,CNC Turning, CNC Milling, Laser Cutting, Bending, Spinning, Wire Cutting, Stamping, Electric Discharge Machining (EDM), Injection Molding | |
| Material | Aluminum: 2000 series, 6000 series, 7075, 5052, AL 6061-T6, 6063, 7075-T etc. Alloy Steel: 1214L/1215/1045/4140/SCM440/40CrMo |
|
| Drawing format | STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. | |
| Production Process | Raw material incoming inspection→Drawing Confirmation→Machine Setup→Trial Production→Sample quality check and confirmation→Mass production→Final Inspection→Packing→Ready to Ship | |
| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. |
|
| Application | Auto Parts, Hydraulic Hoses, Oil Machinery, Geological Drilling, MotorCycle, Bycycle, Agricultural Machine Parts, Engineering Machinary, Fastners. | |
| Surface roughness | Ra 0.1~3.2 | |
| Surface Treatment | Grinding, Polish, Deburr, Painting, Galvanization, Chrome Plating, Anodization treatment etc | |
| Inspection | 100% Dimensional Check 100% Visual Check Mechanical Properties Inspection, Internal Lab test report or Third Party Inspection Report. |
|
| Inspection Instrument | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge |
|
| Tolerance | Customer's Drawing Request | |
TORICH is an enterprise that has been producing precision steel pipes and steel pipe processing for over 20 years, with a factory area of approximately 20000 square meters
The main products produced are carbon steel and alloy steel grade seamless steel pipes, welded precision steel pipes, DOM steel pipes, seamless and welded stainless steel pipes.And our separate workshop also produce machined cast iron parts and cast steel parts, as well ad customized precision parts and difficult precision parts. Our strength is with in our ability to produce metal parts of higher quality control in an integrated process, from mapping and mould design, to casting, forging, machining, heat treatment, surface treatment, assembly and testing.
TORICH team is familiar with the quality requirements and process standards of precision parts and steel tubes of leading industrial companies at home and abroad, constantly optimizes the production and management level, and constantly looks for like-minded excellent suppliers, which enable us to reduce the production cost and have a comparative advantage over many of our competitors.
In the field of processing, TORICH has 18 sets 4-axis/3-axis CNC machines and over 30 sets of CNC lathers. The machining center is capable of machining 1100x600x800mm parts and the CNC lathes are capable of processing 550x1500mm parts. We specialize in machining stainless steel, alloy steel and other hard metals, as well as carbon steel, aluminium, and copper, with a dimensional accuracy of 0.01mm.
As of 2023, TORICH has perfectly cooperated with more than 50 countries, including Russia, India, Australia, the United Kingdom, France, the United States, Canada, Brazil, and Egypt. Quality and reputation are always our first concerns, with the aim of well serving every customer who trusts in us. TORICH looks forward to partnering with customers all over the world.
Our products are sold all over the world, you can rest assured.
