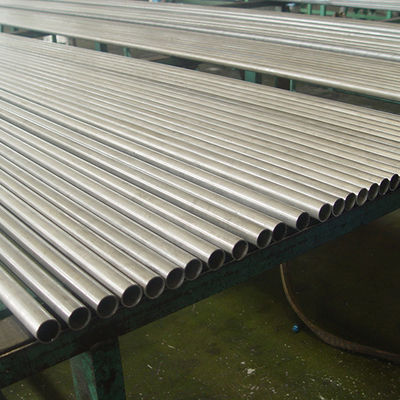

EN10305-4 Seamless Cold Drawn Steel Tubes for Precision Applications
| O.D | 5-420mm |
| W.T | 0.5-50mm |
| L | MAX 12000mm |
| Applications | For hydraulic and pneumatic power systems |
Steel Grade and Chemical Compositions
| Steel Name | Steel Number | C max | Si max | Mn max | P max | S max | Al max |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 |
Permissible Deviations of The Product Anaysis Form The Specified Limits Given
| Element | Specified limit of the cast analysis % by miss | Permissible deviation of the product analysisi% by mass |
| C | ≤0.22 | +0.07 |
| Si | ≤0.55 | +0.05 |
| Mn | ≤1.60 | +0.1 |
| P | ≤0.025 | +0.005 |
| S | ≤0.015 | +0.003 |
| Al | ≤0.025 | +0.005 |
Mechanical Properties at Room Temperature
| Steel Grade |
Yield strength ReH min Mpa |
Tensile strength Rm min Mpa |
Elongation A min % | |
| Steel Name | Steel Number | |||
| E251 | 1.0212 | 215 | 290-430 | 30 |
| E235 | 1.0308 | 235 | 340-480 | 25 |
| E355 | 1.0580 | 355 | 490-630 | 22 |
