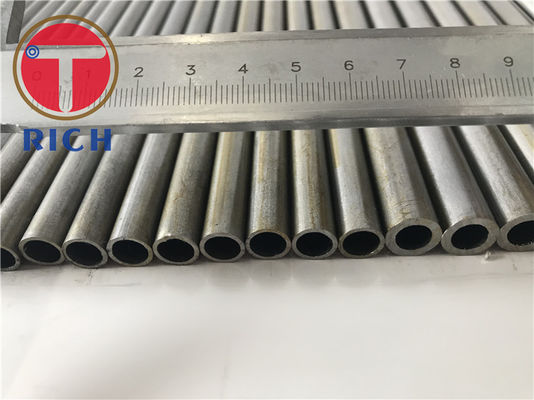

SA179 Cold Drawn High Pressure Boiler Tube Seamless

SA179 Cold Drawn High Pressure Boiler Tube Seamless

MOQ: 3Ton
Price: USD 1000-2000 Per Ton
Standard Packaging: In bundles
Delivery Period: 5-8 Weeks
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 6000 Tons Per Year
Detail Information
Place of Origin
Zhejiang China
Brand Name
TORICH
Certification
ISO 9001
Model Number
ASTM A179
Alloy Or Not:
Non-alloy
Surface Treatment:
Oiled
Standard:
ASTM
Certification:
CE
Application:
Boilers, Superheaters,Heat-exchangers, Condensers
O.D.:
5 - 420 Mm
Thickness:
0.5 - 50 Mm
Length:
<12m Or As Customer Demand
Material:
SA179
Highlight:

ASTM A179 Cold Drawn Steel Tube

,

Cold Drawn High Pressure Boiler Tube

,

SA179 High Pressure Boiler Tube

Product Description

SA179 Seamless Cold-Drawn High Pressure Boiler Tube

SA179 Cold Drawn High Pressure Boiler Tube Seamless 0

Standard: ASTM A179, for Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes

Steel grade: SA179

Size: 5-420mm,0.5-50mm, length,max 12000mm

Applications:
for Boilers, Superheaters,
Heat-Exchangers,
High-pressure Boilers,
Steam Boilers
Cold Condensers and High-Pressure Services,
High-Temperature Services for Boiler Constructions



Heat Treatment:
Tubes are heat treated after the final cold draw pass at a temperature of 1200(650) or higher

Surface Finish:
Finish Tubes are free of scale.
We have normal heat treatment annealing with black surface.
Have bright annealing with grey and bright surface.

Mechanical Testing:
Flattening Test
Flaring Test
Flange Test
Hardness Test



Chemical Composition

Material C Mn P S
A179 0.06-0.18 0.27-0.63 0.035max 0.035max


Mechanical Property

Material Tensile Strength,Mpa Yield Strength,Mpa Elongation/%
A179 Min 415 Min 205 Max 20



QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking



SA179 Cold Drawn High Pressure Boiler Tube Seamless 1

SA179 Cold Drawn High Pressure Boiler Tube Seamless 2SA179 Cold Drawn High Pressure Boiler Tube Seamless 3SA179 Cold Drawn High Pressure Boiler Tube Seamless 4SA179 Cold Drawn High Pressure Boiler Tube Seamless 5SA179 Cold Drawn High Pressure Boiler Tube Seamless 6SA179 Cold Drawn High Pressure Boiler Tube Seamless 7SA179 Cold Drawn High Pressure Boiler Tube Seamless 8SA179 Cold Drawn High Pressure Boiler Tube Seamless 9SA179 Cold Drawn High Pressure Boiler Tube Seamless 10SA179 Cold Drawn High Pressure Boiler Tube Seamless 11SA179 Cold Drawn High Pressure Boiler Tube Seamless 12SA179 Cold Drawn High Pressure Boiler Tube Seamless 13
