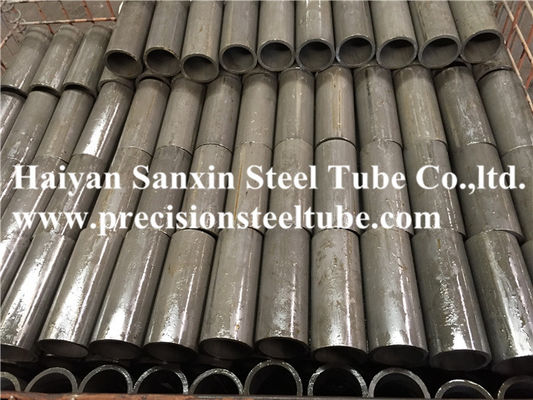

Smooth Surface Hydraulic Cylinder Tube , Hydraulic Cylinder Pipe High Precision

Smooth Surface Hydraulic Cylinder Tube , Hydraulic Cylinder Pipe High Precision

Smooth Surface Hydraulic Cylinder Tube , Hydraulic Cylinder Pipe High Precision
Smooth Surface Hydraulic Cylinder Tube , Hydraulic Cylinder Pipe High Precision

Large Image :  Smooth Surface Hydraulic Cylinder Tube , Hydraulic Cylinder Pipe High Precision Get Best Price

Product Details:

Place of Origin: Haiyan, China
Brand Name: Sanxin
Certification: ISO9001, ISO14001, TS16949
Model Number: OD:10-350mm, WT:1-30mm

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: sea worthy packing in bundles or boxes
Delivery Time: 30-45 days after payment
Payment Terms: T/T
Supply Ability: 1000 tons per month
Detailed Product Description
Standard: DIN2391 Material: Carbon Or Alloy
Shape: Round Size: Outer Diameter: 10-350mm, Wall Thickness: 1-30mm
Length: Max 12m Delivery Condition: BK, BKW, BKS, GBK, NBK
High Light:

hydraulic cylinder pipe

,

hydraulic seamless pipe



Cold Drawn Precision Hydraulic Cylinder Steel Tube DIN2391 ST35 ST45 ST52





Standard DIN2391
Material ST35, St45, ST52
Delivery Condition BK, BKW, BKS, GBK, NBK
Size Range OD: 10-350mm, WT: 1-30mm
Length Max 12m
Surface Surface is clean and smooth, without oxide scale
Application High precision purpose, auto parts, oil cylinder, etc
Certificate TS16949, ISO 9001
Delivery Time 30-45 days after payment
Packing Bundles or Wooden Boxes



Steel Grade Chemical Composition
Symbol Material Number C Si Mn P S
Max. Max. Max. Max.
ST35 1.0308 0.17 0.35 ≥0.40 0.025 0.025
ST45 1.0408 0.21 0.35 ≥0.40 0.025 0.025
ST52 1.058 0.22 0.55 ≤1.60 0.025 0.025



Steel Grade BK BKW BKS
Name No. Rm A Rm A Rm ReH A
Mpa % Mpa % Mpa Mpa %
ST35 1.0308 480 6 420 10 420 315 14
ST45 1.0408 580 5 520 8 520 375 12
ST52 1.058 640 4 580 7 580 450 10



Steel Grade GBK NBK
Name No. Rm A Rm ReH A
Mpa % Mpa Mpa %
ST35 1.0308 315 25 340--470 235 25
ST45 1.0408 390 21 440--570 255 21
ST52 1.058 450 22 490--630 355 22
