Wear Resistant Carbon Steel Welded Pipe , Weldable Steel Tubing 1 - 35mm Thickness
  • name
  • name
  • name
  • name
  • name
  • name

Wear Resistant Carbon Steel Welded Pipe , Weldable Steel Tubing 1 - 35mm Thickness

MOQ: negotiable
Price: negotiable
Details Information
Product Description
Detail Information
Place of Origin
Zhejiang, China (Mainland)
Certification
ISO 9001 TS16949 ISO 14001
Standard:
ASTM, DIN
Grade:
10#, 20#, Q195, Q215, Q235, Q345, St37, St37-2, ST37.4, St45, St52, St52.4
Application:
Hydraulic Pipe, Auto Parts
Technique:
Cold Drawn
Special Pipe:
Drawn Over Mandrel
Characteristic:
Precision Cold Drawn Tube
Product Name:
ERW TUBE
Keyword:
Welded Tube Strength
Material:
Carbon Steel
Surface:
Weld Seam Removed
Highlight:

erw precision steel tubes

,

electric resistance welded tube

Product Description



Trade assurance high strength wear-resistant welded tube strength



EN10305-2 Cold Drawn Welded Precision Steel Tubes DOM tubing E155,E195,E235,E275,E355 +C +LC +SR +A +N

DOM is a process that is applied to tubing after it is initially constructed.It is refferred to as Seamless ,It can be said that do seamless process method on ERW tubes,So the tubes will have a high strength ,high quality .Material form E155  E195 E235 E275 E355 1020 1026 and so on .DOM tubing is commonly use in auto parts .

 welded tube strength

Production Process:
Cold rolling by Cold pilger machine and Cold rolling machine
Size: 6-350mm

WT: 1.0-35mm


1. Standard:
EN10305-2 Cold Drawn Precision Seamless Steel Pipes


2. Steel Grade:
E155,E195,E235,E275,E355, other materials upon agreement with customers.


3. Production method:
Cold drawn on the welded steel tubes, to reach high accuracy on the OD and WT tolerance



4. Packing:
In Hexagonal Bundles, with anti-rust oil protection, with seaworthy packing


5. Deliver condition:
1). +C No heat treatment after the final cold drawing process
2). +LC After the final heat treatment there is a suitable drawing pass
3). +SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
4). +A After the final cold drawing process the tubes are annealed in a controlled atmosphere
5). +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere

Wear Resistant Carbon Steel Welded Pipe , Weldable Steel Tubing 1 - 35mm Thickness 0

Wear Resistant Carbon Steel Welded Pipe , Weldable Steel Tubing 1 - 35mm Thickness 1

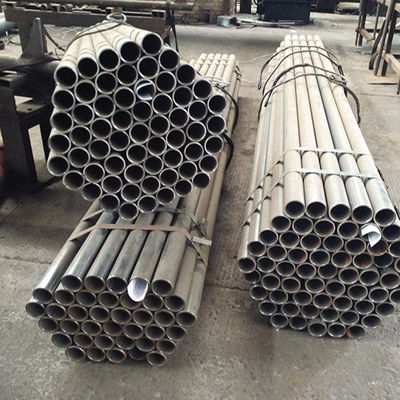

Detailed Images

Wear Resistant Carbon Steel Welded Pipe , Weldable Steel Tubing 1 - 35mm Thickness 2







QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness,                  Impact, Mictrostruture etc
8~ Packing and Stocking.



Wear Resistant Carbon Steel Welded Pipe , Weldable Steel Tubing 1 - 35mm Thickness 3

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us

Tags:

electric resistance welded tube,

spiral welded steel pipe,

erw precision steel tubes
