Product Details:
Payment & Shipping Terms:
|
| Standard: | ASTM | Grade Group: | CrNi Alloy |
|---|---|---|---|
| Grade: | 1Cr13Mn9Ni1N | Outer Diameter(Round): | 6 - 127 Mm |
| Application: | Boiler Pipe | Technique: | Cold Drawn |
| Special Pipe: | Boiler Tubes | Keywords: | Heat Exchanger Shell Tube Stainless |
| Type: | Seamless | ||
| High Light: | carbon steel boiler tubes,carbon steel seamless pipes |
||
Seamless Steel Tubes SA213 U tubes for boilers and heat exchangers applications
heat exchanger shell tube stainless
OD:6-127mm
WT:0.5-12mm

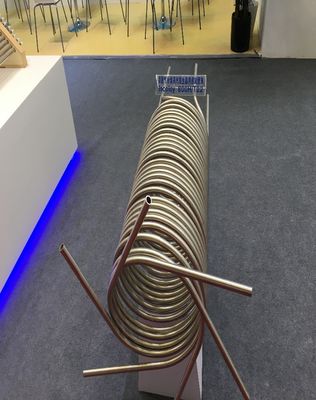

SA213 long steel tubes, make to U bend tubes for boilers and heat exchangers.
With strong wood structure box packing by containers loading and shipping.
Heater tubes U TUBES with Stainless, Alloy steel grade available, Carbon Steel grade is also available.
Mechanical Properties:
Material | Mechanical Properties | ||
Tensile Strength ≥ MPa | yield strength ≥ MPa | Elongation ≥ % | |
T12 | 415 | 220 | 21161630 |
TP304 | 515 | 205 | 35 |
TP304L | 458 | 170 | 35 |
TP316 | 515 | 205 | 35 |
TP316L | 485 | 170 | 35 |
TP317 | 515 | 205 | 35 |
TP317L | 515 | 205 | 35 |
TP321 | 515 | 205 | 35 |
Acknowledge:
Gauge-Inch-mm Gauge 12 14 15 16
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
A: A professional steel pipes materials inventor, manufacturer and solution provider
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
