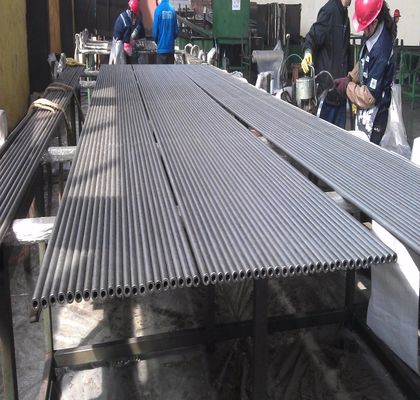

Heat Exchanger Boiler High Pressure Carbon Steel Pipe A192 Grade High Performance

Heat Exchanger Boiler High Pressure Carbon Steel Pipe A192 Grade High Performance

Heat Exchanger Boiler High Pressure Carbon Steel Pipe A192 Grade High Performance
Heat Exchanger Boiler High Pressure Carbon Steel Pipe A192 Grade High Performance Heat Exchanger Boiler High Pressure Carbon Steel Pipe A192 Grade High Performance

Large Image :  Heat Exchanger Boiler High Pressure Carbon Steel Pipe A192 Grade High Performance Get Best Price

Product Details:

Place of Origin: Zhejiang, China (Mainland)
Certification: ISO9001, ISO14001, TS16949

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Detailed Product Description
Grade: A192 Thickness: 1 - 15 Mm
Section Shape: Round Outer Diameter(Round): 6 - 168 Mm
Application: Boiler Pipe Technique: Cold Drawn
Surface Treatment: Phosphating And Oil Production: Cold Drawn
Material: Carbon Steel
High Light:

carbon steel boiler tubes

,

carbon steel seamless pipes


ASTM A192 Cold Drawn High Pressure Seamless Carbon Steel Heat Exchanger Boiler Tubes



ASTM A192 Seamless carbon steel boiler tubes for high pressure service
Seamless Carbon Steel Boiler Tubes for High-Pressure Service
Minimum-Wall-Thickness



Applications:
for Boilers,Superheaters,
Heat-Exchangers,
High-pressure Boilers,
Steam Boilers
Cold Condensers and High-Pressure Services,
High-Temperature Services for Boiler Constructions


Size range: O.D.:6-168mm     W.T.: 1-15mm        L: according to customer requirement
Manufacture:
Tubes are manufactured by seamless process and both hot finished and cold finished are applicable.
Heat treatment:
Hot finished tubes need not be heat treated.
Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher

Steel Grade and Chemical Compositions:

C
0.06-0.18
Mn
0.27-0.63
P
≤0.035
S
≤0.035
Si
≤0.25

Mechanical Properties
Tensile Streghth: min ksi[Mpa] 47[325]
Yield Point: min ksi[Mpa] 26[180]
Elongation: ≥35%

Hardness:

Brinell Hardness
Rockwell Hardness Number
WT≥0.200in(5.1mm)
WT<0.200in(5.1mm)
137HRB
77HRB
Tolerance for OD and WT(SA-450/SA-450M)
OD in(mm)
+
-
WT in(mm)
+
-
<1''(25.4)
0.10
0.10
≤1.1/2''(38.1)
20%
0
1''~1.1''(25.4~38.1)
0.15
0.15
>1.1/2''(38.2)
22%
0
>1.1/2''~<2''(38.1~50.8
0.20
0.20



2''~<2.1/2''(50.8~63.5)
0.25
0.25



2.1/2''~<3''(63.5~76.2)
0.30
0.30



3''~<4''(76.2~101.6)
0.38
0.38



4''~<7.1/2''(101.6~190.5)
0.38
0.64



>7.1/2~9''(190.5~228.6)
0.38
1.14




Mechanical Testing:
Flattening Test
Flaring Test
Flange Test
Hardness Test
Hydrostatic Test
