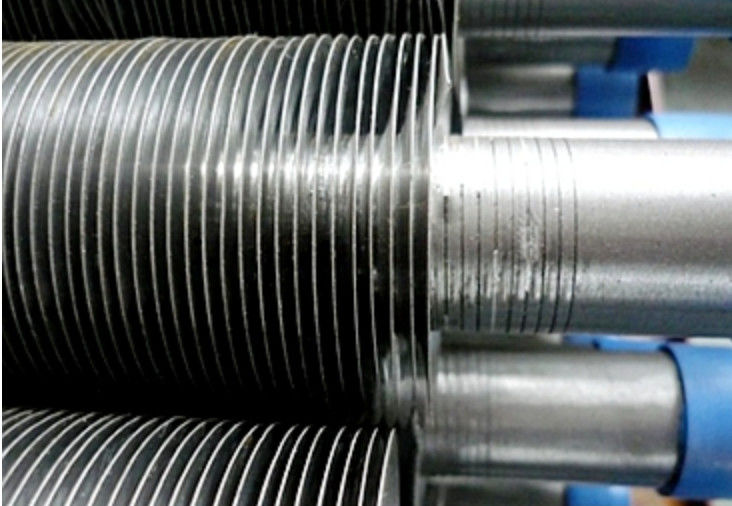

Carbon Steel Spiral Heat Exchanger Steel Tube Round 2 - 10mm Thickness

Carbon Steel Spiral Heat Exchanger Steel Tube Round 2 - 10mm Thickness

Carbon Steel Spiral Heat Exchanger Steel Tube Round 2 - 10mm Thickness
Carbon Steel Spiral Heat Exchanger Steel Tube Round 2 - 10mm Thickness Carbon Steel Spiral Heat Exchanger Steel Tube Round 2 - 10mm Thickness Carbon Steel Spiral Heat Exchanger Steel Tube Round 2 - 10mm Thickness Carbon Steel Spiral Heat Exchanger Steel Tube Round 2 - 10mm Thickness

Large Image :  Carbon Steel Spiral Heat Exchanger Steel Tube Round 2 - 10mm Thickness Get Best Price

Product Details:

Place of Origin: Zhejiang, China (Mainland)
Certification: BSI

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Detailed Product Description
Thickness: 2 - 10 Mm Section Shape: Round
Outer Diameter(Round): 16 - 140 Mm Technique: ERW
Special Pipe: Fin Tube Product Name: Air Fin Cooler Finned Copper Spiral Fin Tube
Keyword: Spiral Fin Tube Dimension: OD:16-140mm WT:2-10mm Length:1-25m
Usage: Air Fin Cooler
High Light:

finned copper tubing

,

seamless boiler tube

Air Fin Cooler Finned Copper spiral fin tube

Carbon Steel Spiral Heat Exchanger Steel Tube Round 2 - 10mm Thickness 0

BaseTube material:
Carbon steel(SA106 GrB SA179 BS-3059 Gr.320 ASME SA210-A1) Stainless steel(SA213 304) copper muff
Dimension:
OD:16-140mm WT:2-10mm Length:1-25m
Fin material:

CS,1100Al,1060Al ,11Cr,6063,SA213-TP304H,ASME SA515-70 and so on
Fin type:
KL,L,LL,H ,spiral slot,low,Stud pipes-Visual, type
Dimension:
Thickness of fin :0.5-4.0mm Height of fin:5-30mm Fin pitch :3.5-40mm
Make the craft:
steel tube polishing-tooth punching on steel strip-Solid rolling on steel trip-High frequency welding-Hydrostatic pressure test, chamfering, polishing-Quality inspection -Packaging
Produce method:extruded & serrated
Application:
air cooler, fired heater, heat exchanger, marine boiler, economizer, power plant boiler, HRSG boiler, waste heat recovery unit, air heater etc
Characteristic:1.Anti-corrosion2.Anti-wear3.Lower contact resistance 4.Higher Stability
Packaging:Iron frame + plywood packaging Rust preventive coating is available



Carbon Steel Spiral Heat Exchanger Steel Tube Round 2 - 10mm Thickness 1





Carbon Steel Spiral Heat Exchanger Steel Tube Round 2 - 10mm Thickness 2



21



QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.

PACKING &DELIVERY

Packing Details : In bundles or in wooden boxes packaging
Delivery Details : 30-60days
