Carbon Steel Boiler And Superheater Tubes SA-210C 5-420mm

MOQ:	3Ton
Price:	USD 1000-2000 Per Ton
Standard Packaging:	as you request
Delivery Period:	5-8 Weeks
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	6000 Tons Per Year

Details Information

Product Description

Detail Information

Place of Origin

Zhejiang China

Brand Name

TORICH

Certification

CE，ISO

Model Number

ASTM A210

Product Name:

SA-210C 5-420mm Carbon Steel Boiler And Superheater Tubes

Material:

Carbon

Alloy Or Not:

Non-alloy

Technique:

Hot Finished Or Cold Finished

Outer Diameter(round):

12.7-127 Mm

Thickness:

0.9-12.7mm

Length:

5-420mm

Usage:

Boiler, Superheater

Standard:

SA210

Grade:

Highlight:

Superheater Carbon Steel Tube

420mm Carbon Steel Tube

Carbon Steel Superheater Tubes

Product Description

SA-210C 5-420mm Carbon Steel Boiler and Superheater Tubes

SA-210C 5-420mm Carbon Steel Boiler and Superheater Tubes
Applications: for Boilers,Superheaters,Steam linepipes of boilers
Size range: O.D.:12.7-127mm W.T.:1-15mm L: according to customer requirement

Carbon steel marterial sa 210 gr.a1 seamless boiler tube condenser tubes

Steel Grade and Chemical Compositions:
Grade	C	Mn	P	S	Si
A-1	≤0.27	≤0.93	≤0.035	≤0.035	≥0.10
C	≤0.35	0.29-1.06	≤0.035	≤0.035	≥0.10

Mechanical properties:

Grade	Yield Point Mpa(ksi)	Tensile Strength Mpa(ksi)	Elongation
A-1	≥255(37)	≥415(60)	≥30%
C	≥275(40)	≥485(70)	≥30%

Tolerance for OD and WT(SA-450/SA-450M)
OD in(mm)	+	-	WT in(mm)	+	-
<1''(25.4)	0.10	0.10	≤1.1/2''(38.1)	20%	0
1''~1.1''(25.4~38.1)	0.15	0.15	>1.1/2''(38.2)	22%	0
>1.1/2''~<2''(38.1~50.8	0.20	0.20
2''~<2.1/2''(50.8~63.5)	0.25	0.25
2.1/2''~<3''(63.5~76.2)	0.30	0.30
3''~<4''(76.2~101.6)	0.38	0.38
4''~<7.1/2''(101.6~190.5)	0.38	0.64
>7.1/2~9''(190.5~228.6)	0.38	1.14

Surface Condition:

Pickling or shot blasting, Passivated, Black Phosphating.

Tests and Inspection:

Flattening Test

Flaring Test

Hardness Test

Hydrostatic or Nondestruction Electric Test ( Eddy Current and Ultrasonic Testing)

Carbon steel marterial sa 210 gr.a1 seamless boiler tube condenser tubes

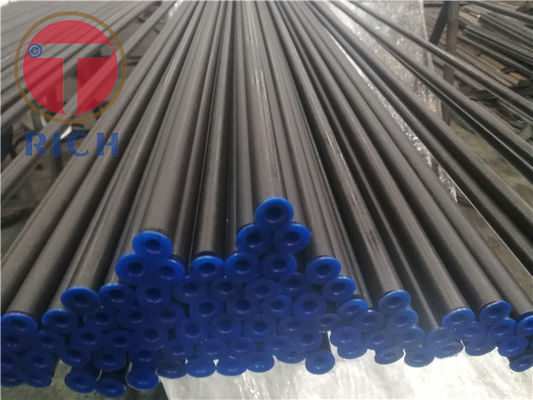

PRODUCT PICTURE

Carbon Steel Boiler And Superheater Tubes SA-210C 5-420mm 0 t exchangestainless steel pipe

QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.

Carbon Steel Boiler And Superheater Tubes SA-210C 5-420mm 1

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample of Carbon steel marterial sa 210 gr.a1 seamless boiler tube condenser tubes for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
