Product Details:
Payment & Shipping Terms:
|
| Product Name: | EN10305-1 Cold Drawn Seamless Precision Steel Pipe China | Material: | 10#, 20#, 45#, ST35, St35.4, |
|---|---|---|---|
| Keyword: | Precision Steel Pipe China | Technique: | Cold Drawn |
| Alloy Or Not: | Non-alloy | OD: | 12-120mm |
| WT: | 0.5-12mm | Length: | 1-12m |
| Sample: | Avaliable | Brand: | TORICH |
| High Light: | Cold Drawn Seamless Precision Steel Pipe,EN10305-1 Seamless Precision Steel Tube,EN10305-1 Seamless Precision Steel Pipe |
||

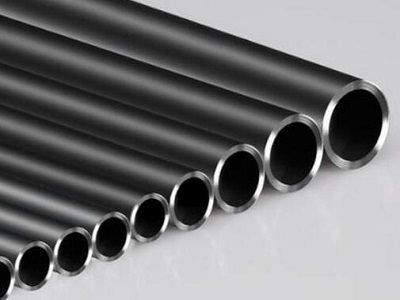

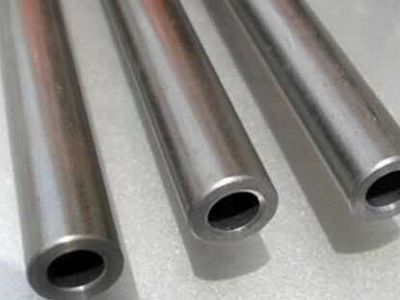

EN10305-1 Cold Drawn Seamless Precision Steel Pipe China
| Product Name | EN10305-1 Cold Drawn Seamless Precision Steel Pipe China |
| Material | 10#, 20#, 45#, ST35, St35.4 or as requst |
| Standard | EN10305-1 |
| Certificate | ISO9001 |
| OD | 12-120mm |
| WT | 0.5-12mm |
| Heat Treatment | BK,BKW,BKS,GBK,NBK |
| Shippment | 20'GP/40'GP/40'HQ |
| Chemical composition(%) of EN 10305-1 | ||||||
| Steel grade | Steel | C(% max) | Si(% max) | Mn(% max) | P(% max) | S(% max) |
| Name | Number | |||||
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.015 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.015 |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.015 |
| Mechanical and technological properties of EN 10305-1 | ||
| Yield strength | Tensile strength | Elongation |
| (min Mpa) | (min Mpa) | (min %) |
| 215 | 290-430 | 30 |
| 235 | 340-480 | 25 |
| 355 | 490-630 | 22 |
Seamless Precision Steel Pipe are widely used in:
Engineering machinery Machine tool industry Hydraulic industry Special vehicle
Automobile pipeline Heavy machinery Compressor Shipbuilding industry
Railway locomotive Diesel engine Utility boiler Injection molding machine
Power equipment Heavy duty automobile Forging and stamping machine
Main Characteristics of Seamless Precision Steel Pipe China:
No Oxidation Layer on the Outer and Inner Walls
No Crack under Flaring and Flattening
No Leakage under High Pressure
No Distortion after Cold Bending
High Precision High Cleanness Excellent Brightness
