Precision CNC Part Shock Absorber Piston Rods Shocks Piston Rod

Precision CNC Part Shock Absorber Piston Rods Shocks Piston Rod

The basic parts of CNC milling machines usually refer to structural parts such as bed, column, beam, worktable, base, etc., which are large in size (commonly known as large parts), and constitute the basic frame of the machine tool. Other parts are attached to the base, and some need to move along the base. Since the base piece plays a supporting and guiding role, the basic requirement for the base piece is good rigidity.

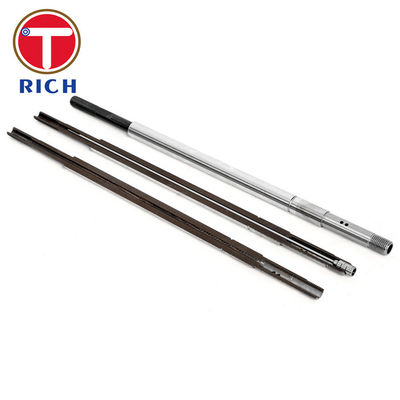

Shocks Piston Rod is our main product,we also called it Shock Absorber Piston Rods,it's a kind of Precision CNC Part.

1.Quick detail:

2.CNC Information:

CNC milling machine is also called CNC (Computer Numerical Control) ,meaning a milling machine controlled by digital signals from an electronic meter, which is an automatic processing equipment developed on the basis of general milling machines.The advantages are as below:

(1) Strong adaptability and flexibility,

(2) High processing accuracy, stable and reliable processing quality

(3) The high degree of production automation can reduce the labor intensity of the operator. Conducive to the automation of production management;

(4) High production efficiency.

Specification
Material:(SAE1035/SAE1045) Induction hardness:HRC35~HRC65
Outer diameter:6-60mm
Case depth:0.4~2.0
Length:30-1000mm
Axis hardness:HB220~280
Straightness:0.02 x 300

Availability status:Chromed/QPQ

Roundness:0.01

Thickness of chromed:(5~40um)

Cylindricity:0.02

Plating hardness:900Hv(50gm) min

Concentricity:0.04 Cracks:30 ~ 60/mm

Surface roughness:Rz0.2~0.4 / Ra0.1max

Multi-spindle technology
Whether it is a "one-time" drilling of a complex hole pattern, hundreds of holes arranged in a row, or even simultaneous multi-spindle machining of multiple workpieces, the use of multi-spindle machining for various configurations of drilling, threading and milling operations Is the key. After years of practice, we have reliably implemented this technology in various machining concepts. One of the latest innovations in this field is the spindle fine-tuning technology for multi-spindle heads, which allows precise manual 2-axis of the spindle Position and angle adjustment. Such as linear, transmission or rotary table machining cnc machining plastic parts centers.

4.Picture from our production:

5.Production facility:

TORICH offers precision CNC precision machining parts service, cnc machining parts,cnc milling parts based on the metal material like carbon, alloy, copper, stainless, etc. We foucus on the metal & plastic rapid prototyping and CNC machining services with low volume. TORICH has had ISO 9001 certification.

What we have: 3-axis, 4-axis and 5-axis CNC machines, Radial Drilling Machine, Automatic lathe walking machine, Cnc Machine Laser etc.

6.FAQ

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of CNC machining accessories ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:How to get the sample of CNC ?
A:1. You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2. Sample charges will be refunded when order is placed.
