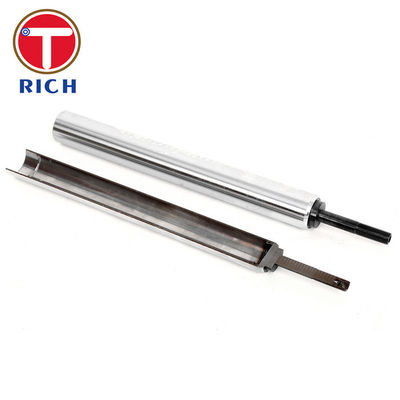

Stainless Steel CNC Machining Hydraulic Piston Rod Hydraulic Cylinder Piston Rod
The basic parts of CNC milling machines usually refer to structural parts such as bed, column, beam, worktable, base, etc., which are large in size (commonly known as large parts), and constitute the basic frame of the machine tool. Other parts are attached to the base, and some need to move along the base. Since the base piece plays a supporting and guiding role, the basic requirement for the base piece is good rigidity.
Hydraulic Piston Rod or Hydraulic Cylinder Piston Rod is a kind of Stainless Steel CNC Machining,used for car,has precision process.
1. Product details
Product Name | Chrome Plated Rod/Bar |
Material | Stainless Steel 304/316/2205/2507.CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430,etc. |
Delivery Condition | Hard Chrome Piston Rod ( HRC 15-20) |
Quenched & Tempered (Q+T) Rod (HRC 28-32) | |
Induction Hardened Rod (HRC 55-62) | |
Q+T Induction Hardened Rod (HRC 60-65) | |
Straightness: | <= 0.2/1000 |
Roughness: | Ra <= 0.2u |
Diameter | As customer’s needs |
Chrome layer | 20 micron (min) to 100 micron |
Length | max 13m |
Standard | DIN2391, EN10305, GB/T 1619 |
Tolerance | ISO f7/h8/g6 |
Shape | Round |
Protection: | anti-rust oil on outside surface,hard cardboard sleeve protection |
Used | Hydraulic Cylinders |
Packing: | wooden case |
CNC milling machine is also called CNC (Computer Numerical Control) ,meaning a milling machine controlled by digital signals from an electronic meter, which is an automatic processing equipment developed on the basis of general milling machines.The advantages are as below:
2.CNC Information:
(1) Strong adaptability and flexibility,
(2) High processing accuracy, stable and reliable processing quality
(3) The high degree of production automation can reduce the labor intensity of the operator. Conducive to the automation of production management;
(4) High production efficiency.
Multi-spindle technology
Whether it is a "one-time" drilling of a complex hole pattern, hundreds of holes arranged in a row, or even simultaneous multi-spindle machining of multiple workpieces, the use of multi-spindle machining for various configurations of drilling, threading and milling operations Is the key. After years of practice, we have reliably implemented this technology in various machining concepts. One of the latest innovations in this field is the spindle fine-tuning technology for multi-spindle heads, which allows precise manual 2-axis of the spindle Position and angle adjustment. Such as linear, transmission or rotary table machining cnc machining plastic parts centers.
Hydraulic Piston Rod or Hydraulic Cylinder Piston Rod is a kind of Stainless Steel CNC Machining,used for car,has precision process.
4.Picture from our production:
5.Production facility:
TORICH offers precision CNC precision machining parts service, cnc machining parts,cnc milling parts based on the metal material like carbon, alloy, copper, stainless, etc. We foucus on the metal & plastic rapid prototyping and CNC machining services with low volume. TORICH has had ISO 9001 certification.
What we have: 3-axis, 4-axis and 5-axis CNC machines, Radial Drilling Machine, Automatic lathe walking machine, Cnc Machine Laser etc.
Hydraulic Piston Rod or Hydraulic Cylinder Piston Rod is a kind of Stainless Steel CNC Machining,used for car,has precision process.
6.FAQ
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of CNC machining accessories ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:How to get the sample of CNC ?
A:1. You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2. Sample charges will be refunded when order is placed.
