Small Part Machining Precision Machining Parts Hollow Piston Rods
The basic parts of CNC milling machines usually refer to structural parts such as bed, column, beam, worktable, base, etc., which are large in size (commonly known as large parts), and constitute the basic frame of the machine tool. Other parts are attached to the base, and some need to move along the base. Since the base piece plays a supporting and guiding role, the basic requirement for the base piece is good rigidity.

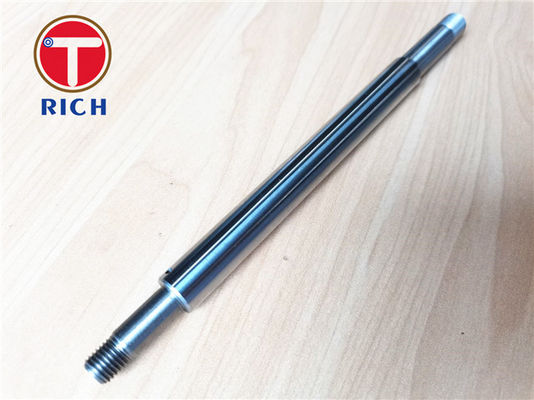

Hollow Piston Rods is a kind of Precision Machining Parts,used for the damper of car,we are good at Small Part Machining.
1. Product details
Product Name | Small Part Machining Precision Machining Parts Hollow Piston Rods |
Material | Stainless Steel 304/316/2205/2507/SAE1035/SAE1045 |
Delivery Condition | Hard Chrome Piston Rod ( HRC 15-20) |
Quenched & Tempered (Q+T) Rod (HRC 28-32) | |
Induction Hardened Rod (HRC 55-62) | |
Q+T Induction Hardened Rod (HRC 60-65) | |
Straightness: | <= 0.2/1000 |
Roughness: | Ra <= 0.2u |
Diameter | As customer’s needs |
Chrome layer | 20 micron (min) to 100 micron |
Length | max 13m |
Standard | DIN2391, EN10305, GB/T 1619 |
Tolerance | ISO f7/h8/g6 |
Shape | Round |
Protection: | anti-rust oil on outside surface,hard cardboard sleeve protection |
Used | Damper |
Packing: | wooden case |
CNC milling machine is also called CNC (Computer Numerical Control) ,meaning a milling machine controlled by digital signals from an electronic meter, which is an automatic processing equipment developed on the basis of general milling machines.The advantages are as below:
2.CNC Information:
(1) Strong adaptability and flexibility,
(2) High processing accuracy, stable and reliable processing quality
(3) The high degree of production automation can reduce the labor intensity of the operator. Conducive to the automation of production management;
(4) High production efficiency.

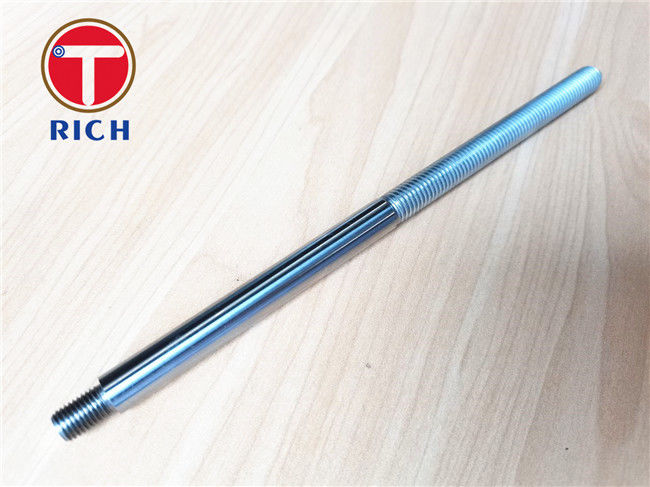

3.Picture from our production:
Stainless steel piston rod is mainly used in hydraulic pneumatic, engineering machinery, automobile manufacturing piston rod.The piston rod is processed by rolling. Because the surface layer has residual compressive stress, it is helpful to close the micro-cracks on the surface and hinder the expansion of erosion.The corrosion resistance of the surface can be improved, and the fatigue crack can be delayed, so the fatigue strength of the cylinder rod can be increased.Through rolling forming, the rolling surface forms a layer of cold work hardening layer, which reduces the elastic and plastic deformation of the contact surface of the grinding pair, thus improving the wear resistance of the cylinder rod surface, and avoiding the burn caused by grinding.After rolling, the surface roughness value decreases and the fit properties are improved.At the same time, the friction damage to the sealing ring or sealing parts is reduced when the cylinder rod piston moves, and the whole service life of the cylinder is improved.Rolling process is a kind of high efficiency and high quality process measure, the diameter of 160mm Jingwei brand cutting rolling head (45 seamless steel pipe) as an example to prove the rolling effect.After rolling, the surface roughness of cylinder rod decreases from Ra3.2~6.3um to Ra0.4~0.8um, the surface hardness of cylinder rod increases by about 30%, and the surface fatigue strength of cylinder rod increases by 25%.The service life of cylinder can be increased by 2-3 times, and the efficiency of rolling process can be increased by about 15 times compared with grinding process.The above data show that the rolling process is efficient and can greatly improve the surface quality of cylinder rod.
4.Production facility:
TORICH offers precision CNC precision machining parts service, cnc machining parts,cnc milling parts based on the metal material like carbon, alloy, copper, stainless, etc. We foucus on the metal & plastic rapid prototyping and CNC machining services with low volume. TORICH has had ISO 9001 certification.
What we have: 3-axis, 4-axis and 5-axis CNC machines, Radial Drilling Machine, Automatic lathe walking machine, Cnc Machine Laser etc.Hollow Piston Rods is a kind of Precision Machining Parts,used for the damper of car,we are good at Small Part Machining.
5.FAQ
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of CNC machining accessories ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:How to get the sample of CNC ?
A:1. You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2. Sample charges will be refunded when order is placed.
