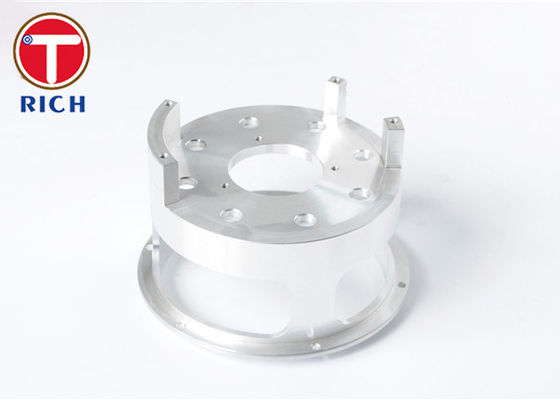

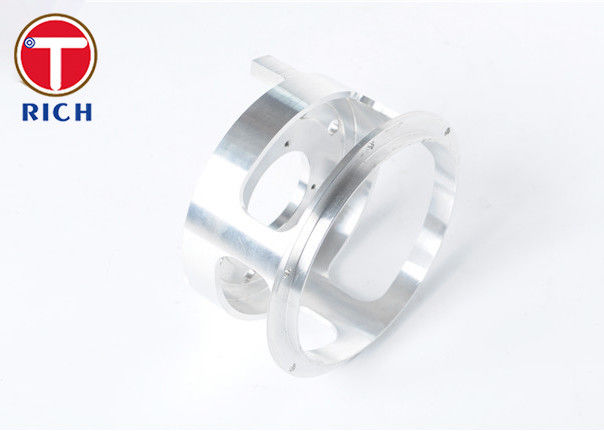

6061 T6 Cnc Machining Metal Parts For Stop Valve Seat

6061 T6 Cnc Machining Metal Parts For Stop Valve Seat

  • High Light

    6061 T6 Cnc Machining Metal Parts

    ,

    Stop Valve Seat CNC Machining Parts

    ,

    CNC Milling Stop Valve Seat

  • Name
    6061-T6 Cnc Part Manufacturer Machining For Cnc Machining Metal Parts Stop Valve Seat
  • Usage
    Stop Valve Seat
  • Production Technology
    CNC Milling
  • Material
    6061-T6
  • MOQ
    5 Pcs
  • Package
    PE Bag+carton Box Or Other Custom Packaging
  • Place of Origin
    China
  • Brand Name
    TORICH
  • Certification
    CE,ISO
  • Model Number
    CNC
  • Minimum Order Quantity
    5 pcs
  • Price
    $1.2-1.5/pc
  • Packaging Details
    PE bag+carton Box
  • Delivery Time
    5-14 days
  • Payment Terms
    D/A, Western Union, MoneyGram
  • Supply Ability
    60000 piece per month

6061 T6 Cnc Machining Metal Parts For Stop Valve Seat

6061-T6 Cnc Part Manufacturer Machining for Cnc Machining Metal Parts Stop Valve Seat



Basic CNC machining of metal parts involves the use of Computer Numerical Control (CNC) technology to manufacture precise components from various types of metals. Here is a step-by-step overview of the process:

  1. Design: The first step is to create a 3D digital model of the metal part using computer-aided design (CAD) software. The design includes all the necessary dimensions, features, and tolerances.

  2. Programming: Once the design is complete, a CNC programmer prepares the instructions for the CNC machine. This involves translating the CAD design into a CNC-compatible language (such as G-code) that the machine can understand.

  3. Material selection: Select the appropriate metal material for the part based on factors like strength, durability, and specific application requirements. Common metals used in CNC machining include aluminum, steel, stainless steel, brass, and titanium.

  4. Material preparation: Start with a block, sheet, or rod of the chosen metal material. The material is cut into a suitable size and shape to fit the CNC machine and accommodate the part's design.

  5. Machine setup: Mount the metal material onto the CNC machine's worktable or fixture. The machine is calibrated and programmed to accurately position the cutting tools and perform the required operations.

  6. Machining operations: The CNC machine precisely executes the programmed instructions to shape the metal part. Various machining operations may be performed, such as:

    • Milling: Cutting away material using rotating cutting tools to create features like slots, pockets, and complex contours.
    • Turning: Rotating the metal part while a cutting tool removes material to create cylindrical shapes like shafts and threads.
    • Drilling: Creating holes with precise diameters and depths.
    • Tapping: Cutting internal threads using a specialized tapping tool.
  7. Finishing operations: After the primary machining operations are complete, secondary operations like deburring, polishing, or surface treatment may be applied to improve the part's aesthetics and functionality.

  8. Inspection and quality control: The finished metal part is inspected to ensure it meets the specified dimensions, tolerances, and quality standards. This may involve using measurement tools like calipers, micrometers, or coordinate measuring machines (CMMs).

  9. Packaging and delivery: The final inspected parts are packaged securely for protection and transported to their intended destination.



1.Quick detail:

Name Cnc Part Manufacturer Machining,Cnc Machining Metal Parts
Material Alloy 40Cr, 20Cr
Surface Degreasing, polishing, deburring,etc
Usage Auto industry, power system, bridge construction,bearing industry,etc
Equipment Automatic height gauge;multi-joint arm; Marble platform; Roughness measurement; etc
Tolerance +/-0.01mm
Packing PE plastic bag, carton, wooden pallet,
Surface treatment Nickel-plated, zinc-plated, silver-plated, gold-plated, oxidized,Sand blasting, Brushing & polishing of cnc mechanical parts.



2.What is CNC:

CNC milling machine is also called CNC (Computer Numerical Control) ,meaning a milling machine controlled by digital signals from an electronic meter, which is an automatic processing equipment developed on the basis of general milling machines.The CNC machining metal parts' advantages are as below:

(1) High flexibility of CNC machining metal parts,

(2) High processing accuracy, stable and reliable processing quality

(3) The high degree of production automation can reduce the labor intensity of the operator. Conducive to the automation of production management;



3.Multi-spindle technology
Whether it is a "one-time" drilling of a complex hole pattern, hundreds of holes arranged in a row, or even simultaneous multi-spindle machining of multiple workpieces, the use of multi-spindle machining for various configurations of drilling, threading and milling operations Is the key. After years of practice, we have reliably implemented this technology in various machining concepts. One of the latest innovations in this field is the spindle fine-tuning technology for multi-spindle heads, which allows precise manual 2-axis of the spindle Position and angle adjustment. Such as linear, transmission or rotary table machining
cnc machining plastic parts
centers.



4.Picture from our production:

6061 T6 Cnc Machining Metal Parts For Stop Valve Seat 0

6061 T6 Cnc Machining Metal Parts For Stop Valve Seat 1

6061 T6 Cnc Machining Metal Parts For Stop Valve Seat 2

6061 T6 Cnc Machining Metal Parts For Stop Valve Seat 3

6061 T6 Cnc Machining Metal Parts For Stop Valve Seat 4

6061 T6 Cnc Machining Metal Parts For Stop Valve Seat 5















5.Production facility:

TORICH offers Cnc Part Manufacturer Machining service:

CNC lathes: 30
Automatic feeding CNC lathes: 2
Milling machine: 2
Instrument lathes: 10
Drilling machine: 10
Four-axis automatic drilling machine: 20 sets
Edge milling machine: 1 set
Tapping machine: 6
Hydraulic press: 2
Punch: 2
Radial drilling machine: 1
Polishing machine: 2 sets
Welding machine: 1 set
Oven: 2 sets
Ultrasonic cleaning machine: 2 sets

6061 T6 Cnc Machining Metal Parts For Stop Valve Seat 6

6061 T6 Cnc Machining Metal Parts For Stop Valve Seat 7



6.FAQ

Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or  is 30-60 days if the goods of
cnc part manufacturer machining are not in stock, it is according to quantity.
Q: Do you provide samples of CNC machining accessories ? is it free or extra ?
A: Yes, we could offer the sample of
cnc part manufacturer machining for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:How to get the sample of CNC ?
A:1. You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2. Sample charges will be refunded when order is placed.
