Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing

Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing

  • Highlight

    Stainless Steel Precision CNC Machining Parts

    ,

    Die Casting Micro CNC Turning Parts

    ,

    Precision Casting Aluminum CNC Machining Parts

  • Type
    Turning
  • Cnc Machining Or Not
    CNC Machining
  • Micro Machining Or Not
    Micro Machining
  • Material Capabilities
    Stainless Steel
  • Material
    Stainless Steel
  • Process
    Turning
  • Application
    Mechanical Parts Etc
  • Product Name
    CNC Machining
  • Keyword
    Cnc Turning Parts,Custom CNC Machining Parts
  • Equipment
    CNC Machining Centres,CNC Turning
  • Name
    Customized Machined CNC Machining
  • Place of Origin
    zhejiang
  • Brand Name
    TORICH
  • Certification
    ISO9001 ISO14001 TS16949
  • Model Number
    CNC Turning Parts
  • Minimum Order Quantity
    1Pcs
  • Price
    Negotiable
  • Packaging Details
    plastic box packaging
  • Delivery Time
    4-8weeks
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    5000Tons per Year

Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing

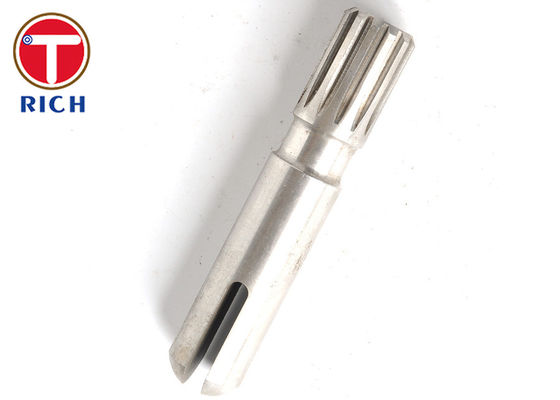

Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing 0

CNC Machining Parts: Precision Casting and Aluminum Die Casting Services

Introduction

CNC machining is a widely used manufacturing process that enables the production of complex and precise parts. This article focuses on CNC machining services for stainless steel precision casting and aluminum die casting. We will cover the materials used, drawing formats, production processes, surface roughness, treatments, inspection instruments, and applications of CNC machining parts.

Materials Used

  1. Stainless Steel: Stainless steel is a popular choice due to its corrosion resistance, high strength, and durability. It is suitable for various applications, including automotive, aerospace, and medical industries.

  2. Aluminum: Aluminum is known for its lightweight properties and excellent thermal conductivity. It finds applications in industries such as electronics, automotive, and consumer goods.

Drawing Formats

CNC machining requires precise instructions for producing parts. Commonly used drawing formats include:

  • CAD (Computer-Aided Design): CAD files are digital 2D or 3D representations of the part's design, which provide all necessary dimensions and specifications.

  • CAM (Computer-Aided Manufacturing): CAM files are generated from CAD data and provide instructions for the CNC machine to carry out the manufacturing process.

Production Process

Precision Casting

Precision casting, also known as investment casting, is a process used to create intricate and detailed parts. The production process involves the following steps:

  1. Pattern Creation: A pattern, typically made of wax or a similar material, is produced based on the CAD design.

  2. Mold Assembly: The pattern is attached to a gating system to create a mold.

  3. Shell Building: The mold is dipped in a ceramic slurry and coated with fine sand to create a ceramic shell around the pattern.

  4. Dewaxing: The ceramic shell is heated to melt and remove the wax pattern, leaving behind a cavity in the shape of the desired part.

  5. Casting: Molten stainless steel is poured into the ceramic shell, filling the cavity.

  6. Cooling and Solidification: The casting cools and solidifies inside the mold.

  7. Finishing: The casting is removed from the ceramic shell, and finishing processes, such as cutting and polishing, are performed.

Aluminum Die Casting

Aluminum die casting is a process that uses a mold, called a die, to produce complex aluminum parts. The steps involved are as follows:

  1. Die Preparation: The die is coated with a release agent to aid in the removal of the finished part.

  2. Injection: Molten aluminum is forced into the die under high pressure.

  3. Cooling: The aluminum solidifies and takes the shape of the die.

  4. Ejection: The solidified part is ejected from the die.

  5. Trimming and Finishing: Excess material and imperfections are removed, and the part is finished to meet required specifications.

Surface Roughness and Treatment

The surface roughness of CNC machined parts is critical for their functionality and appearance. After machining, the parts may undergo various surface treatments, including:

  • Polishing: This process smoothens the surface to achieve a high-quality finish.

  • Anodizing: Aluminum parts can undergo anodization to improve corrosion resistance and add color.

  • Passivation: Stainless steel parts can be passivated to enhance corrosion resistance and remove surface contaminants.

  • Plating: Parts can be plated with various materials, such as nickel or chrome, to improve appearance and durability.

Inspection Instruments

To ensure the precision and quality of CNC machined parts, various inspection instruments are used, including:

  • CMM (Coordinate Measuring Machine): CMMs accurately measure the dimensions and geometries of parts.

  • Calipers and Micrometers: These tools are used for precise measurements of length and thickness.

  • Surface Roughness Testers: Used to measure the surface roughness of machined parts.

Applications

CNC machining parts find applications in numerous industries, such as:

  • Automotive: Engine components, transmission parts, and brake components.

  • Aerospace: Aircraft fittings, turbine blades, and structural components.

  • Medical: Surgical instruments, implants, and medical devices.

  • Electronics: Computer parts, connectors, and smartphone components.

  • Consumer Goods: Household appliances, sporting goods, and fashion accessories.



Product name Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing
Production Equipment CNC, Milling Machine Processing, CNC Lathe Processing,CNC Turning, CNC Milling, Laser Cutting, Bending, Spinning, Wire Cutting, Stamping, Electric Discharge Machining (EDM), Injection Molding
Material Copper
Drawing format STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples.
Production Process Raw material incoming inspection→Drawing Confirmation→Machine Setup→Trial Production→Sample quality check and confirmation→Mass production→Final Inspection→Packing→Ready to Ship
Finish Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish,
Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing,
electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench),
Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc.
Application Auto Parts, Hydraulic Hoses, Oil Machinery, Geological Drilling, MotorCycle, Bycycle, Agricultural Machine Parts, Engineering Machinary, Fastners.
Surface roughness Ra 0.1~3.2
Surface Treatment Grinding, Polish, Deburr, Painting, Galvanization, Chrome Plating, Anodization treatment etc
Inspection 100% Dimensional Check
100% Visual Check
Mechanical Properties Inspection, Internal Lab test report or Third Party Inspection Report.
Inspection Instrument Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM
Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge
Tolerance Customer's Drawing Request

Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing 1

Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing 2     Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing 3



Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing 4     Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing 5



Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing 6

Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing 7

TORICH is an enterprise that has been producing precision steel pipes and steel pipe processing for over 20 years, with a factory area of approximately 20000 square meters



The main products produced are carbon steel and alloy steel grade seamless steel pipes, welded precision steel pipes, DOM steel pipes, seamless and welded stainless steel pipes.And our separate workshop also produce machined cast iron parts and cast steel parts, as well ad customized precision parts and difficult precision parts. Our strength is with in our ability to produce metal parts of higher quality control in an integrated process, from mapping and mould design, to casting, forging, machining, heat treatment, surface treatment, assembly and testing.



TORICH team is familiar with the quality requirements and process standards of precision parts and steel tubes of leading industrial companies at home and abroad, constantly optimizes the production and management level, and constantly looks for like-minded excellent suppliers, which enable us to reduce the production cost and have a comparative advantage over many of our competitors.



In the field of processing, TORICH has 18 sets 4-axis/3-axis CNC machines and over 30 sets of CNC lathers. The machining center is capable of machining 1100x600x800mm parts and the CNC lathes are capable of processing 550x1500mm parts. We specialize in machining stainless steel, alloy steel and other hard metals, as well as carbon steel, aluminium, and copper, with a dimensional accuracy of 0.01mm.



As of 2023, TORICH has perfectly cooperated with more than 50 countries, including Russia, India, Australia, the United Kingdom, France, the United States, Canada, Brazil, and Egypt. Quality and reputation are always our first concerns, with the aim of well serving every customer who trusts in us. TORICH looks forward to partnering with customers all over the world.



Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing 8



Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing 9



Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing 10



Stainless Steel Precision Casting CNC Machining Parts Aluminum Die Casting Processing 11



1. Are you manufacturer or trader ?
TORICH is manufacturer based trading company.

2. How can we get samples ?
Ready to ship samples can be delivered within 3 working days, developing samples need to be confirmed with our engineer and sales team.

3.How can I get a quote?
Detailed drawings (PDF/STEP/IGS/DWG...) with material, quantity and surface treatment information.

4. Can I get a quote without drawings?
Sure, we appreciate to receive your samples, pictures or drafts with detailed dimensions for accurate quotation.

5. What is the lead time?
15-60 day depending on different order quantity and products.

6. Can you provide samples before mass production?
Sure, sample fee is needed, will be returned when mass production if possible.

7. What is your payment terms?
30% deposit, the balance 70% before shipping.

8. What is your packing method?
Safty and strong packing suitable for sea shipping and air shipping.

9. What will you do if we receive poor quality parts?
Please kindly send us the pictures, our engineers will find the solutions and remake them for you asap.
