In various automotive applications, precision components play a crucial role in ensuring optimal performance and durability. Among these components, the motor pulley stands out as a fundamental part of the motor belt drive system. This article delves into the world of Stainless Steel CNC Turning Parts Motor Pulleys, exploring their design, materials, production processes, surface characteristics, applications, and quality control measures.
Motor pulleys are essential components in automotive systems that employ belt-driven mechanisms. They facilitate the transfer of rotational motion from the motor to various other components, such as fans, pumps, and alternators. The design and material choice of motor pulleys significantly impact the overall efficiency and reliability of the automotive system.
Stainless steel, known for its corrosion resistance and high strength properties, is a prime choice for CNC turning parts such as motor pulleys. The most commonly used stainless steel grades for motor pulleys are 304 and 316 due to their excellent combination of mechanical properties and corrosion resistance. These materials ensure the motor pulleys can withstand the demanding conditions often found in automotive environments.
The design of a motor pulley involves precision engineering to ensure optimal performance. The drawing format includes essential dimensions, tolerances, and specifications necessary for CNC machining. Key design considerations include the number of grooves, groove dimensions, bore size, and overall pulley dimensions. The design must accommodate the specific belt type and size used in the automotive system.
The production of Stainless Steel CNC Turning Parts Motor Pulleys involves several steps:
Material Preparation: High-quality stainless steel bars are selected for the CNC machining process.
CNC Turning: Computer Numerical Control (CNC) machines are used to precisely shape the stainless steel bars into the desired motor pulley geometry. CNC turning ensures tight tolerances and accurate dimensions.
Groove Machining: The single groove required for the motor belt is machined into the pulley using specialized tooling.
Bore Drilling: The central bore is drilled to the specified size to fit the motor shaft precisely.
Finishing: The pulley undergoes surface finishing processes, which may include polishing or bead blasting to achieve the desired surface roughness and appearance.
Surface roughness is a critical factor in motor pulley performance. A smooth surface reduces friction between the pulley and the belt, increasing efficiency and minimizing wear. Commonly, a surface roughness of Ra 0.8 to 1.6 micrometers is targeted for motor pulleys. Surface treatments like passivation or electropolishing can be applied to enhance the corrosion resistance of the stainless steel and improve its overall surface finish.
Ensuring the precision and quality of motor pulleys involves rigorous inspection processes. Instruments such as coordinate measuring machines (CMMs) are used to verify dimensional accuracy. Functional tests involving fitment with the motor shaft and the belt are conducted to ensure proper engagement and alignment. Visual inspection and non-destructive testing techniques are employed to detect any surface defects or irregularities.
Stainless Steel CNC Turning Parts Motor Pulleys find application in a wide range of automotive systems, including:
Engine Systems: Motor pulleys are utilized in engine cooling fans, water pumps, and superchargers.
Climate Control: HVAC systems use motor pulleys to drive air circulation fans.
Power Steering: Motor pulleys are integral to power steering systems, aiding in precise steering control.
Electrical Generators: Alternators in automotive electrical systems utilize motor pulleys for energy conversion.

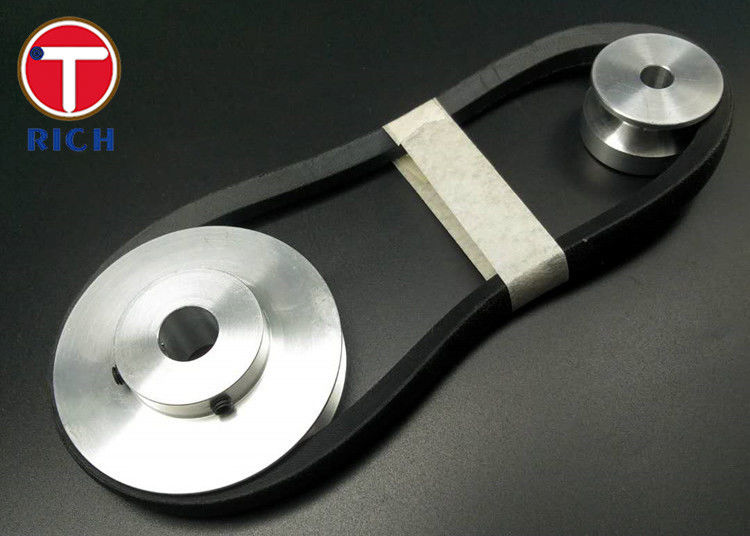

| Product name | Stainless Steel CNC Turning Parts Motor Pulley Single Groove Motor Belt Drive Pulley For Auto | |
| Production Equipment | CNC, Milling Machine Processing, CNC Lathe Processing,CNC Turning, CNC Milling, Laser Cutting, Bending, Spinning, Wire Cutting, Stamping, Electric Discharge Machining (EDM), Injection Molding | |
| Material | Stainless Steel | |
| Drawing format | STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. | |
| Production Process | Raw material incoming inspection→Drawing Confirmation→Machine Setup→Trial Production→Sample quality check and confirmation→Mass production→Final Inspection→Packing→Ready to Ship | |
| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. |
|
| Application | Auto Parts, Hydraulic Hoses, Oil Machinery, Geological Drilling, MotorCycle, Bycycle, Agricultural Machine Parts, Engineering Machinary, Fastners. | |
| Surface roughness | Ra 0.1~3.2 | |
| Surface Treatment | Grinding, Polish, Deburr, Painting, Galvanization, Chrome Plating, Anodization treatment etc | |
| Inspection | 100% Dimensional Check 100% Visual Check Mechanical Properties Inspection, Internal Lab test report or Third Party Inspection Report. |
|
| Inspection Instrument | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge |
|
| Tolerance | Customer's Drawing Request | |
TORICH is an enterprise that has been producing precision steel pipes and steel pipe processing for over 20 years, with a factory area of approximately 20000 square meters
The main products produced are carbon steel and alloy steel grade seamless steel pipes, welded precision steel pipes, DOM steel pipes, seamless and welded stainless steel pipes.And our separate workshop also produce machined cast iron parts and cast steel parts, as well ad customized precision parts and difficult precision parts. Our strength is with in our ability to produce metal parts of higher quality control in an integrated process, from mapping and mould design, to casting, forging, machining, heat treatment, surface treatment, assembly and testing.
TORICH team is familiar with the quality requirements and process standards of precision parts and steel tubes of leading industrial companies at home and abroad, constantly optimizes the production and management level, and constantly looks for like-minded excellent suppliers, which enable us to reduce the production cost and have a comparative advantage over many of our competitors.
In the field of processing, TORICH has 18 sets 4-axis/3-axis CNC machines and over 30 sets of CNC lathers. The machining center is capable of machining 1100x600x800mm parts and the CNC lathes are capable of processing 550x1500mm parts. We specialize in machining stainless steel, alloy steel and other hard metals, as well as carbon steel, aluminium, and copper, with a dimensional accuracy of 0.01mm.
As of 2023, TORICH has perfectly cooperated with more than 50 countries, including Russia, India, Australia, the United Kingdom, France, the United States, Canada, Brazil, and Egypt. Quality and reputation are always our first concerns, with the aim of well serving every customer who trusts in us. TORICH looks forward to partnering with customers all over the world.
