The left and right support block is an integral component of a CNC lathe machine. Its purpose is to provide support to the workpiece during the machining process, ensuring accuracy and stability. This article will discuss the various aspects of the left and right support block, including its precision casting, material, drawing format, production process, surface roughness, treatment, inspection instruments, and application.
The left and right support blocks are typically manufactured using precision casting techniques. Precision casting ensures that the final product is of high quality and meets the required specifications. This process involves creating a mold of the support block and pouring molten material into the mold. Once solidified, the block is carefully removed from the mold, resulting in a precise and accurate component.
The material used for the left and right support block depends on the specific requirements of the CNC lathe machine. Generally, materials with excellent mechanical properties and high strength are preferred. Common materials used for support blocks include cast iron and steel alloys. These materials offer durability, good wear resistance, and dimensional stability, ensuring reliable performance and longevity.
To manufacture the left and right support block accurately, a detailed drawing in the appropriate format is essential. The drawing provides all the necessary specifications, including dimensions, tolerances, and surface finish requirements. The drawing format most commonly used in the CNC machining industry is Computer-Aided Design (CAD). CAD provides precise measurements and detailed geometries, enabling the manufacturer to produce the support block with utmost accuracy.
The production process of the left and right support block involves several stages. After the design is finalized, the precision casting process takes place, as previously mentioned. Once the casting is complete, the block undergoes various machining operations such as milling, drilling, and turning to achieve the desired shape and dimensions. Quality control inspections are conducted throughout the production process to ensure compliance with the specifications.
The surface roughness of the left and right support block is a critical parameter that affects the overall performance of the CNC lathe machine. A smooth surface finish is necessary to minimize friction and ensure precision machining. The surface roughness is measured using instruments such as a profilometer or a surface roughness tester. After measurement, appropriate treatments, such as grinding, polishing, or coating, may be applied to achieve the required surface quality.
During the manufacturing process, inspection instruments are utilized to verify the quality and accuracy of the left and right support block. These instruments include coordinate measuring machines (CMM), optical comparators, calipers, micrometers, and gauges. These tools enable the manufacturer to measure dimensions, check tolerances, and ensure that the block meets the specified requirements.
The left and right support block finds extensive application in CNC lathe machines and plays a crucial role in the machining operation. It provides support and stability to the workpiece, preventing vibrations and deflections during cutting operations. Consequently, it ensures precise and accurate machining, resulting in high-quality finished parts. These support blocks are utilized in various industries, including automotive, aerospace, manufacturing, and precision engineering.
In conclusion, the left and right support blocks are vital components of CNC lathe machines. Through precision casting, these blocks are manufactured using materials with excellent mechanical properties. Detailed drawings and accurate production processes ensure the desired dimensions and surface finish. Inspection instruments are used throughout the manufacturing process to maintain quality control standards. The left and right support block's crucial role in providing stability and support during machining operations makes it an indispensable component in various industries.

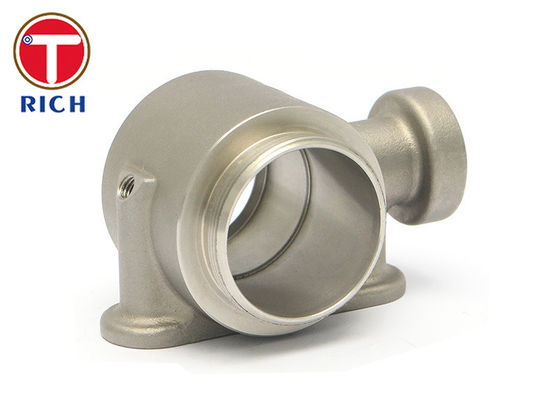

| Product name | Parts Of Cnc Lathe Machine CNC Machining Parts Left And Right Support Block Precision Casting | |
| Production Equipment | CNC, Milling Machine Processing, CNC Lathe Processing,CNC Turning, CNC Milling, Laser Cutting, Bending, Spinning, Wire Cutting, Stamping, Electric Discharge Machining (EDM), Injection Molding | |
| Material | Stainless Steel | |
| Drawing format | STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. | |
| Production Process | Raw material incoming inspection→Drawing Confirmation→Machine Setup→Trial Production→Sample quality check and confirmation→Mass production→Final Inspection→Packing→Ready to Ship | |
| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. |
|
| Application | Auto Parts, Hydraulic Hoses, Oil Machinery, Geological Drilling, MotorCycle, Bycycle, Agricultural Machine Parts, Engineering Machinary, Fastners. | |
| Surface roughness | Ra 0.1~3.2 | |
| Surface Treatment | Grinding, Polish, Deburr, Painting, Galvanization, Chrome Plating, Anodization treatment etc | |
| Inspection | 100% Dimensional Check 100% Visual Check Mechanical Properties Inspection, Internal Lab test report or Third Party Inspection Report. |
|
| Inspection Instrument | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge |
|
| Tolerance | Customer's Drawing Request | |
