CNC precision machining plays a crucial role in the manufacturing industry, especially in the production of precision casting machinery parts. As the demand for high-quality and intricately designed components increases, the importance of CNC machining becomes more apparent. In this article, we will discuss the material used for precision casting machinery parts, drawing formats, the production process, surface roughness and treatment, inspection instruments, and the wide-ranging applications of these parts.
Precision casting machinery parts are commonly manufactured using high-quality materials such as stainless steel, carbon steel, alloy steel, brass, or aluminum. The specific material used depends on the requirements of the part, including its mechanical properties, resistance to corrosion, and thermal stability.
To ensure precision and accuracy in the manufacturing process, precision casting machinery parts are usually designed using CAD (Computer-Aided Design) software. The most commonly used drawing formats include DXF, DWG, IGES, and STEP files. These formats allow for detailed and three-dimensional representation of the parts' geometry, enabling CNC machines to accurately interpret the design specifications.
The production process for precision casting machinery parts involves several steps. It typically starts with the creation of a detailed CAD model, which is then converted into G-code instructions that CNC machines can understand. The CNC machine is programmed to follow these instructions and perform the necessary cutting, shaping, and drilling operations on the chosen material. After the machining process, the parts are carefully inspected for quality control purposes.
Surface roughness plays a significant role in determining the quality and functionality of precision casting machinery parts. CNC machining ensures a high level of precision, resulting in smoother surfaces and lower roughness values. However, in certain cases, additional surface treatments may be required. Processes like polishing, sandblasting, or applying protective coatings can improve the aesthetics, durability, and corrosion resistance of the parts.
To ensure the quality and precision of precision casting machinery parts, various inspection instruments are utilized. These include coordinate measuring machines (CMM), optical comparators, surface roughness testers, and gauges for dimensional checks. The combination of advanced technology and skilled operators guarantees conformance to the specified requirements and ensures consistency in the production process.
Precision casting machinery parts find applications in numerous industries. They are crucial components in the manufacturing of automotive parts, aerospace components, medical devices, machinery, and many other industries where precise and reliable functionality is essential. The high level of accuracy achieved through CNC precision machining makes these parts suitable for use in applications that demand intricate designs, tight tolerances, and excellent surface finishes.
In conclusion, CNC precision machining plays a pivotal role in the production of precision casting machinery parts. With the right choice of material, accurate drawing formats, a well-defined production process, appropriate surface roughness and treatment, and diligent inspection, these parts offer exceptional quality and functionality. Their applications span various industries, making precision casting machinery parts critical components in modern manufacturing processes.

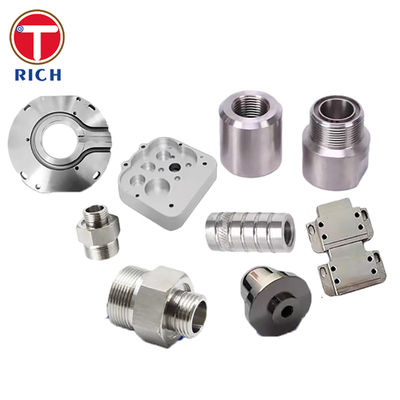

| Product name | Cnc Precision Machining Parts Precision Casting Machinery Parts Five-Axis CNC Machining Precision Casting Machine Parts | |
| Production Equipment | CNC, Milling Machine Processing, CNC Lathe Processing,CNC Turning, CNC Milling, Laser Cutting, Bending, Spinning, Wire Cutting, Stamping, Electric Discharge Machining (EDM), Injection Molding | |
| Material | Stainless Steel | |
| Drawing format | STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. | |
| Production Process | Raw material incoming inspection→Drawing Confirmation→Machine Setup→Trial Production→Sample quality check and confirmation→Mass production→Final Inspection→Packing→Ready to Ship | |
| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. |
|
| Application | Auto Parts, Hydraulic Hoses, Oil Machinery, Geological Drilling, MotorCycle, Bycycle, Agricultural Machine Parts, Engineering Machinary, Fastners. | |
| Surface roughness | Ra 0.1~3.2 | |
| Surface Treatment | Grinding, Polish, Deburr, Painting, Galvanization, Chrome Plating, Anodization treatment etc | |
| Inspection | 100% Dimensional Check 100% Visual Check Mechanical Properties Inspection, Internal Lab test report or Third Party Inspection Report. |
|
| Inspection Instrument | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge |
|
| Tolerance | Customer's Drawing Request | |
TORICH is an enterprise that has been producing precision steel pipes and steel pipe processing for over 20 years, with a factory area of approximately 20000 square meters
The main products produced are carbon steel and alloy steel grade seamless steel pipes, welded precision steel pipes, DOM steel pipes, seamless and welded stainless steel pipes.And our separate workshop also produce machined cast iron parts and cast steel parts, as well ad customized precision parts and difficult precision parts. Our strength is with in our ability to produce metal parts of higher quality control in an integrated process, from mapping and mould design, to casting, forging, machining, heat treatment, surface treatment, assembly and testing.
TORICH team is familiar with the quality requirements and process standards of precision parts and steel tubes of leading industrial companies at home and abroad, constantly optimizes the production and management level, and constantly looks for like-minded excellent suppliers, which enable us to reduce the production cost and have a comparative advantage over many of our competitors.
In the field of processing, TORICH has 18 sets 4-axis/3-axis CNC machines and over 30 sets of CNC lathers. The machining center is capable of machining 1100x600x800mm parts and the CNC lathes are capable of processing 550x1500mm parts. We specialize in machining stainless steel, alloy steel and other hard metals, as well as carbon steel, aluminium, and copper, with a dimensional accuracy of 0.01mm.
As of 2023, TORICH has perfectly cooperated with more than 50 countries, including Russia, India, Australia, the United Kingdom, France, the United States, Canada, Brazil, and Egypt. Quality and reputation are always our first concerns, with the aim of well serving every customer who trusts in us. TORICH looks forward to partnering with customers all over the world.
Our products are sold all over the world, you can rest assured.
