In the world of manufacturing, precision and efficiency are paramount. CNC (Computer Numerical Control) machines have revolutionized the manufacturing industry by making it possible to produce highly intricate and accurate parts with ease. One such machine is the CNC plasma cutter, which utilizes a plasma torch to cut through various types of metal. In this article, we will delve into the realm of CNC plasma parts, discussing their materials, drawing formats, production process, surface roughness, treatment, inspection instruments, and applications.
CNC plasma parts can be fabricated from a wide range of materials, including but not limited to:
These materials offer varying levels of strength, conductivity, and corrosion resistance, allowing manufacturers to choose the most suitable material based on the desired application and cost considerations.
To ensure accurate production, CNC plasma parts are created using meticulous design specifications. Drawings of these parts should ideally be provided in the form of CAD (Computer-Aided Design) files. The most commonly used file formats for CNC plasma cutting include DXF (Drawing Exchange Format) and DWG (Drawing) files, which are compatible with most CNC machines and design software.
The production process for CNC plasma parts involves several steps:
The surface roughness of CNC plasma parts depends on several factors, including the cutting speed, material type, and torch specifications. The resulting surface may exhibit varying degrees of roughness, which can be improved through post-processing techniques such as sanding, polishing, or coating.
Additionally, surface treatment processes may be employed to enhance the part's functionality or aesthetics. Examples of treatments include heat treatment, electroplating, anodizing, or powder coating, which can provide corrosion resistance, wear resistance, or improved appearance.
Quality control and inspection are crucial to ensuring the accuracy and reliability of CNC plasma parts. Advanced inspection instruments play a vital role in this process. The following instruments are commonly used:
These instruments are employed at various stages of production, from initial material inspection to final product verification.
CNC plasma parts find extensive use in various industries, including:
The versatility of CNC plasma parts makes them a popular choice for diverse applications, enabling manufacturers to achieve high precision and cost-effective production.

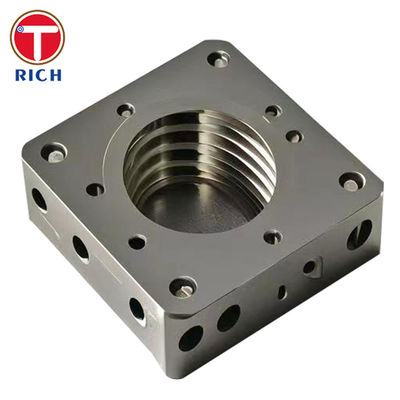

| Product name | CNC Plasma Parts CNC Machine Tool CNC Processing Of Non-Standard Parts Metal Mold Hardware Processing | |
| Production Equipment | CNC, Milling Machine Processing, CNC Lathe Processing,CNC Turning, CNC Milling, Laser Cutting, Bending, Spinning, Wire Cutting, Stamping, Electric Discharge Machining (EDM), Injection Molding | |
| Material | Stainless Steel | |
| Drawing format | STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. | |
| Production Process | Raw material incoming inspection→Drawing Confirmation→Machine Setup→Trial Production→Sample quality check and confirmation→Mass production→Final Inspection→Packing→Ready to Ship | |
| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. |
|
| Application | Auto Parts, Hydraulic Hoses, Oil Machinery, Geological Drilling, MotorCycle, Bycycle, Agricultural Machine Parts, Engineering Machinary, Fastners. | |
| Surface roughness | Ra 0.1~3.2 | |
| Surface Treatment | Grinding, Polish, Deburr, Painting, Galvanization, Chrome Plating, Anodization treatment etc | |
| Inspection | 100% Dimensional Check 100% Visual Check Mechanical Properties Inspection, Internal Lab test report or Third Party Inspection Report. |
|
| Inspection Instrument | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge |
|
| Tolerance | Customer's Drawing Request | |
TORICH is an enterprise that has been producing precision steel pipes and steel pipe processing for over 20 years, with a factory area of approximately 20000 square meters
The main products produced are carbon steel and alloy steel grade seamless steel pipes, welded precision steel pipes, DOM steel pipes, seamless and welded stainless steel pipes.And our separate workshop also produce machined cast iron parts and cast steel parts, as well ad customized precision parts and difficult precision parts. Our strength is with in our ability to produce metal parts of higher quality control in an integrated process, from mapping and mould design, to casting, forging, machining, heat treatment, surface treatment, assembly and testing.
TORICH team is familiar with the quality requirements and process standards of precision parts and steel tubes of leading industrial companies at home and abroad, constantly optimizes the production and management level, and constantly looks for like-minded excellent suppliers, which enable us to reduce the production cost and have a comparative advantage over many of our competitors.
In the field of processing, TORICH has 18 sets 4-axis/3-axis CNC machines and over 30 sets of CNC lathers. The machining center is capable of machining 1100x600x800mm parts and the CNC lathes are capable of processing 550x1500mm parts. We specialize in machining stainless steel, alloy steel and other hard metals, as well as carbon steel, aluminium, and copper, with a dimensional accuracy of 0.01mm.
As of 2023, TORICH has perfectly cooperated with more than 50 countries, including Russia, India, Australia, the United Kingdom, France, the United States, Canada, Brazil, and Egypt. Quality and reputation are always our first concerns, with the aim of well serving every customer who trusts in us. TORICH looks forward to partnering with customers all over the world.
Our products are sold all over the world, you can rest assured.
