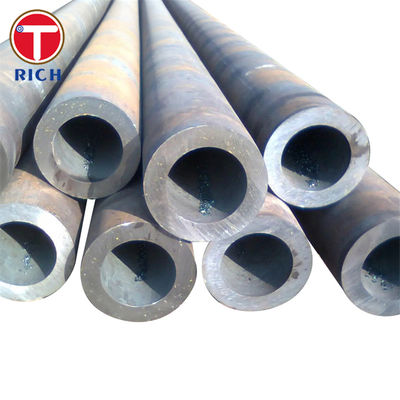

ASTM A192 Seamless Carbon Steel Boiler Tubes For High-Pressure Service

ASTM A192 Seamless Carbon Steel Boiler Tubes For High-Pressure Service

MOQ: 1 Ton
Price: Negotiable
Standard Packaging: In bundles or in wooden boxes.
Delivery Period: 20-40days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 60000 Ton/Tons per Year
Detail Information
Place of Origin
Zhejiang/China
Brand Name
TORICH
Certification
ISO8001 ISO14001 TS16949
Model Number
ASTM A192
Technique:
Hot Rolled,Cold Rolled
Application:
High-Pressure Service
Standard:
ASTM
Alloy Or Not:
Is Alloy
Thickness:
1-50mm
Section Shape:
Rectangular/ Square/ Round
Surface Treatment:
Customerized
Grade Group:
A53-A369
Special Pipe:
Precision Seamless Steel Tube
Secondary Or Not:
Non-secondary
Outer Diameter(round):
17 - 660 Mm
Length:
Customer's Requirement
Usage:
Mechanical Structure
Product Name:
Seamless Steel Pipe
Shape:
Round/Square/Rectangular
Type:
Seamless
Product Description

ASTM A192 Seamless Carbon Steel Boiler Tubes For High-Pressure Service 0

ASTM A192 Seamless Carbon Steel Boiler Tubes for High-Pressure Service

ASTM A192 is a specification that covers seamless carbon steel boiler tubes intended for high-pressure service. These tubes are designed to withstand high temperatures and pressures, making them suitable for various applications in the power generation and petrochemical industries.

Material

The primary material used in ASTM A192 tubes is carbon steel, which is known for its strength and durability. The tubes are manufactured to meet stringent quality standards, ensuring they can perform effectively under high-pressure conditions.

Specification

ASTM A192 specifies the requirements for seamless carbon steel boiler tubes, including dimensions, tolerances, and mechanical properties. The tubes must be produced by a seamless process, ensuring uniformity and integrity.

Key Features

  • High Pressure Resistance: Designed to withstand high-pressure environments.
  • Seamless Construction: Provides uniform strength and eliminates weak points.
  • High Temperature Tolerance: Suitable for high-temperature applications.
  • Corrosion Resistance: Offers good resistance to oxidation and scaling.

Chemical Composition

The chemical composition of ASTM A192 tubes is critical for their performance. Below is a table summarizing the typical chemical composition:

Element Composition (%)
Carbon (C) 0.30 - 0.60
Manganese (Mn) 0.60 - 1.35
Phosphorus (P) ≤ 0.035
Sulfur (S) ≤ 0.025
Silicon (Si) ≤ 0.10
Chromium (Cr) ≤ 0.40
Molybdenum (Mo) ≤ 0.15

Mechanical Properties

The mechanical properties of ASTM A192 tubes are essential for their application in high-pressure environments. Below is a table summarizing the typical mechanical properties:

Property Value
Yield Strength (min) 240 MPa (35,000 psi)
Tensile Strength (min) 415 MPa (60,000 psi)
Elongation (min) 20%
Hardness 85 HRB (max)

Steel Grade

The primary steel grade for ASTM A192 is carbon steel, specifically designed for high-pressure applications. This grade ensures that the tubes can withstand the demanding conditions found in boiler systems.

Application

ASTM A192 seamless carbon steel boiler tubes are widely used in various applications, including:

  • Power Generation: Used in steam boilers and heat exchangers.
  • Petrochemical Industry: Employed in the production of chemicals and fuels.
  • Industrial Heating: Utilized in various heating systems requiring high-pressure tubing.

Possible Alternative Grades

While ASTM A192 is a widely used specification, there are alternative grades that may be suitable for similar applications:

  • ASTM A210: Seamless medium-carbon steel boiler tubes.
  • ASTM A213: Seamless ferritic and austenitic alloy-steel boiler tubes.
  • ASTM A335: Seamless alloy steel pipe for high-temperature service.

These alternative grades may offer different properties and benefits depending on the specific requirements of the application.



ASTM A192 Seamless Carbon Steel Boiler Tubes For High-Pressure Service 1

ASTM A192 Seamless Carbon Steel Boiler Tubes For High-Pressure Service 2     ASTM A192 Seamless Carbon Steel Boiler Tubes For High-Pressure Service 3



ASTM A192 Seamless Carbon Steel Boiler Tubes For High-Pressure Service 4     ASTM A192 Seamless Carbon Steel Boiler Tubes For High-Pressure Service 5



ASTM A192 Seamless Carbon Steel Boiler Tubes For High-Pressure Service 6

ASTM A192 Seamless Carbon Steel Boiler Tubes For High-Pressure Service 7



TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and
trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and
credibility among domestic and foreign customers.

The company's production plant covers an area of over 10,000 square meters, with an annual production
capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.

The group holds shares in more than ten domestic production entities, whose main products include
seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.

Over the past 30 years, the company has been gradually developing new technologies and materials to meet
the growing needs of customers and various diversified needs, exporting to more than 56 countries and still
increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.

ASTM A192 Seamless Carbon Steel Boiler Tubes For High-Pressure Service 8

ASTM A192 Seamless Carbon Steel Boiler Tubes For High-Pressure Service 9

ASTM A192 Seamless Carbon Steel Boiler Tubes For High-Pressure Service 10

ASTM A192 Seamless Carbon Steel Boiler Tubes For High-Pressure Service 11

ASTM A192 Seamless Carbon Steel Boiler Tubes For High-Pressure Service 12

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.



Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
