| MOQ: | 1 Ton |
| Price: | Negotiable |
| Standard Packaging: | In bundles or in wooden boxes. |
| Delivery Period: | 20-40days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 60000 Ton/Tons per Year |

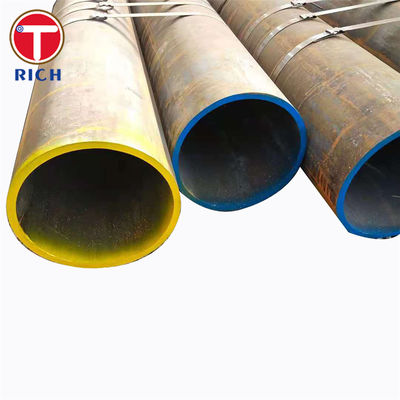

ASTM A210 is a specification for seamless medium-carbon steel boiler and superheater tubes. These tubes are primarily used in the manufacturing of boilers and superheaters in power plants and industrial applications. The specification covers two grades: Grade A-1 and Grade C, each with specific mechanical properties and chemical compositions.
The following table summarizes the chemical composition of ASTM A210 Grade A-1 and Grade C:
| Element | Grade A-1 (%) | Grade C (%) |
|---|---|---|
| Carbon (C) | 0.30 max | 0.35 max |
| Manganese (Mn) | 0.60 - 0.90 | 0.60 - 0.90 |
| Phosphorus (P) | 0.035 max | 0.035 max |
| Sulfur (S) | 0.025 max | 0.025 max |
| Silicon (Si) | 0.10 - 0.40 | 0.10 - 0.40 |
| Chromium (Cr) | 0.40 max | 0.40 max |
| Molybdenum (Mo) | 0.10 max | 0.10 max |
The following table outlines the mechanical properties of ASTM A210 Grade A-1 and Grade C:
| Property | Grade A-1 | Grade C |
|---|---|---|
| Yield Strength (ksi) | 30 min | 35 min |
| Tensile Strength (ksi) | 60 min | 70 min |
| Elongation (%) | 20 min | 20 min |
| Hardness (Rockwell B) | 85 max | 85 max |
ASTM A210 Grade A-1 and Grade C tubes are widely used in:
While ASTM A210 is a widely used specification, there are alternative grades that may be suitable for similar applications:
A: manufacturer,also can do trading.
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
|
|
