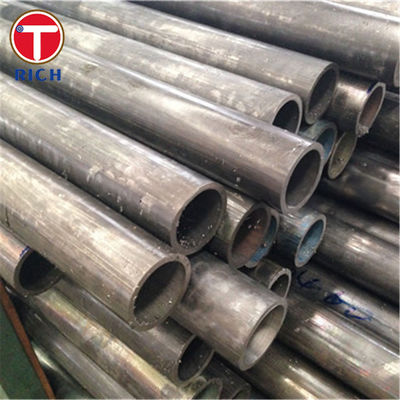

ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements

ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements

MOQ: 1 Ton
Price: Negotiable
Standard Packaging: In bundles or in wooden boxes.
Delivery Period: 20-40days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 60000 Ton/Tons per Year
Detail Information
Place of Origin
Zhejiang/China
Brand Name
TORICH
Certification
ISO8001 ISO14001 TS16949
Model Number
ASTM A530
Technique:
Cold Drawn,Hot Rolled,Cold Rolled
Application:
General Requirements
Standard:
ASTM,GB,DIN,BS
Alloy Or Not:
Is Alloy
Thickness:
0.5 - 50 Mm
Section Shape:
Round,rectangular/ Square/ Round
Grade:
Grade 35 50 60 70 80
Standard2:
ASTM A530
Special Pipe:
Precision Seamless Pipe,precision Seamless Steel Tube
Secondary Or Not:
Non-secondary
Outer Diameter(round):
17 - 660 Mm
Product Name:
Seamless Steel Pipe
Shape:
Round/Square/Rectangular
Type:
Seamless
Product Description

ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements 0

ASTM A530 Grade 35 50 60 70 80 Specialized Carbon And Alloy Steel Pipe

General Requirements

ASTM A530 is a specification that outlines the general requirements for carbon and alloy steel pipes. This standard is crucial for ensuring that the pipes meet specific criteria for various applications, particularly in industries that require high strength and durability.

Material

The materials covered under ASTM A530 include various grades of carbon and alloy steel. These materials are selected based on their mechanical properties, chemical composition, and suitability for specific applications.

Specification

ASTM A530 provides guidelines for the manufacturing, testing, and quality assurance of steel pipes. It includes requirements for dimensions, tolerances, and mechanical properties, ensuring that the pipes are fit for purpose.

Key Features

  • Versatility: Suitable for a wide range of applications.
  • Strength: High tensile strength and durability.
  • Corrosion Resistance: Enhanced resistance to environmental factors.
  • Weldability: Good weldability for various fabrication processes.

Chemical Composition

Grade Carbon (C) Manganese (Mn) Phosphorus (P) Sulfur (S) Silicon (Si) Chromium (Cr) Nickel (Ni) Molybdenum (Mo)
35 0.30 max 0.60 - 0.90 0.04 max 0.05 max 0.10 - 0.40 - - -
50 0.40 max 0.60 - 0.90 0.04 max 0.05 max 0.10 - 0.40 - - -
60 0.50 max 0.60 - 0.90 0.04 max 0.05 max 0.10 - 0.40 - - -
70 0.60 max 0.60 - 0.90 0.04 max 0.05 max 0.10 - 0.40 - - -
80 0.70 max 0.60 - 0.90 0.04 max 0.05 max 0.10 - 0.40 - - -

Mechanical Properties

Grade Yield Strength (ksi) Tensile Strength (ksi) Elongation (%) Hardness (HB)
35 35 60 20 120
50 50 70 20 130
60 60 80 20 140
70 70 90 20 150
80 80 100 20 160

Steel Grade

The ASTM A530 specification includes various grades, each designed for specific applications and performance requirements. The grades range from 35 to 80, with increasing strength and hardness.

Application

ASTM A530 steel pipes are widely used in various industries, including:

  • Construction: Structural applications and frameworks.
  • Oil and Gas: Pipelines and drilling equipment.
  • Manufacturing: Machinery and equipment components.
  • Automotive: Chassis and structural parts.

Possible Alternative Grades

While ASTM A530 grades are suitable for many applications, alternative grades may be considered based on specific requirements:

  • ASTM A106: Seamless carbon steel pipes for high-temperature service.
  • ASTM A53: General-purpose piping for various applications.
  • ASTM A500: Cold-formed welded and seamless carbon steel structural tubing.



ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements 1

ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements 2     ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements 3



ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements 4     ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements 5



ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements 6

ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements 7



TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and
trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and
credibility among domestic and foreign customers.

The company's production plant covers an area of over 10,000 square meters, with an annual production
capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.

The group holds shares in more than ten domestic production entities, whose main products include
seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.

Over the past 30 years, the company has been gradually developing new technologies and materials to meet
the growing needs of customers and various diversified needs, exporting to more than 56 countries and still
increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.

ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements 8

ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements 9

ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements 10

ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements 11

ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements 12

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.



Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
