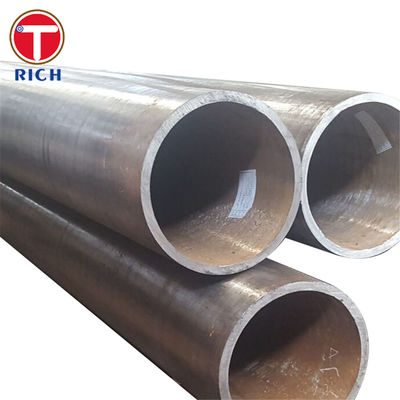

EN10216-1 P195TR1 Seamless Steel Tubes For Pressure Purposes

MOQ:	1 Ton
Price:	Negotiable
Standard Packaging:	In bundles or in wooden boxes.
Delivery Period:	20-40days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	60000 Ton/Tons per Year

Details Information

Product Description

Detail Information

Place of Origin

Zhejiang/China

Brand Name

TORICH

Certification

ISO8001 ISO14001 TS16949

Model Number

EN10216-1 P195TR1

Technique:

Cold Drawn,Hot Rolled,Cold Rolled

Application:

Pressure Purposes

Standard:

ASTM,GB,DIN

Alloy Or Not:

Is Alloy

Thickness:

2 - 120 Mm

Section Shape:

Rectangular/ Square/ Round

Surface Treatment:

Customerized

Grade:

P195TR1 (1.0107); P195TR2 (1.0108); P235TR1 (1.0254); P235TR2 (1.0255); P265TR1 (1.0258); P265TR2 (1.0259)

Standard2:

EN10216-1

Special Pipe:

Precision Seamless Steel Tube

Secondary Or Not:

Non-secondary

Outer Diameter(round):

17 - 660 Mm

Length:

1-12m/as Customers' Requests

Product Name:

Seamless Steel Pipe

Shape:

Round/Square/Rectangular

Type:

Seamless

Product Description

EN10216-1 P195TR1 Seamless Steel Tubes For Pressure Purposes 0

EN10216-1 Seamless Steel Tubes for Pressure Purposes

Material Specification

EN10216-1 is a European standard that specifies the requirements for seamless steel tubes intended for pressure purposes. These tubes are widely used in industries such as oil and gas, petrochemical, and power generation due to their ability to withstand high pressure and temperature conditions. The standard covers several steel grades, including P195TR1 (1.0107), P195TR2 (1.0108), P235TR1 (1.0254), P235TR2 (1.0255), and P265TR1 (1.0258).

Key Features

High Pressure Resistance: Designed to withstand high internal pressures.
Temperature Tolerance: Suitable for high-temperature applications.
Corrosion Resistance: Enhanced resistance to corrosive environments.
Versatility: Applicable in various industrial sectors.
Quality Assurance: Manufactured under strict quality control measures.

Chemical Composition

The chemical composition of these steel grades is crucial for their performance. Below is a table presenting the typical chemical composition for each grade:

Element (%)	P195TR1 (1.0107)	P195TR2 (1.0108)	P235TR1 (1.0254)	P235TR2 (1.0255)	P265TR1 (1.0258)
Carbon (C)	≤ 0.17	≤ 0.17	≤ 0.16	≤ 0.16	≤ 0.20
Manganese (Mn)	≤ 1.20	≤ 1.20	≤ 1.20	≤ 1.20	≤ 1.40
Phosphorus (P)	≤ 0.025	≤ 0.025	≤ 0.025	≤ 0.025	≤ 0.025
Sulfur (S)	≤ 0.020	≤ 0.020	≤ 0.020	≤ 0.020	≤ 0.020
Silicon (Si)	≤ 0.35	≤ 0.35	≤ 0.35	≤ 0.35	≤ 0.35

Mechanical Properties

The mechanical properties of these steel grades determine their suitability for various applications. The table below outlines the typical mechanical properties:

Property	P195TR1 (1.0107)	P195TR2 (1.0108)	P235TR1 (1.0254)	P235TR2 (1.0255)	P265TR1 (1.0258)
Tensile Strength (MPa)	320 - 440	320 - 440	360 - 500	360 - 500	410 - 570
Yield Strength (MPa)	≥ 195	≥ 195	≥ 235	≥ 235	≥ 265
Elongation (%)	≥ 25	≥ 25	≥ 25	≥ 25	≥ 22

Steel Grade

The steel grades covered under EN10216-1 are designed to meet specific requirements for pressure applications. Each grade offers a balance of mechanical properties and chemical composition to suit different industrial needs.

Application

EN10216-1 seamless steel tubes are used in a variety of applications, including:

Boiler Tubes: For high-pressure steam boilers.
Heat Exchangers: In chemical and petrochemical industries.
Pipeline Systems: For transporting gases and liquids under pressure.
Pressure Vessels: In power generation and industrial processing.

Possible Alternative Grades

Depending on the specific requirements of an application, alternative grades may be considered. These could include:

ASTM A106: A comparable standard for seamless carbon steel pipes for high-temperature service.
DIN 17175: A German standard for seamless tubes for elevated temperatures.
API 5L: For pipeline transportation systems in the petroleum and natural gas industries.

EN10216-1 P195TR1 Seamless Steel Tubes For Pressure Purposes 1

EN10216-1 P195TR1 Seamless Steel Tubes For Pressure Purposes 2

EN10216-1 P195TR1 Seamless Steel Tubes For Pressure Purposes 4

EN10216-1 P195TR1 Seamless Steel Tubes For Pressure Purposes 6

TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and

trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and

credibility among domestic and foreign customers.

The company's production plant covers an area of over 10,000 square meters, with an annual production

capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.

The group holds shares in more than ten domestic production entities, whose main products include

seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.

Over the past 30 years, the company has been gradually developing new technologies and materials to meet

the growing needs of customers and various diversified needs, exporting to more than 56 countries and still

increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
