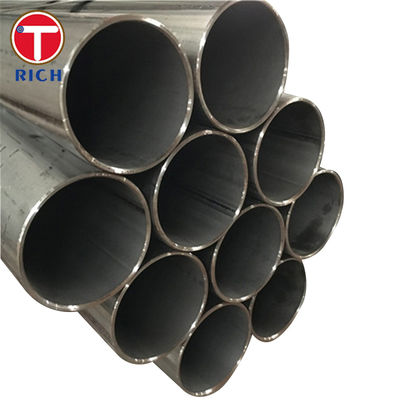

EN10217-1 P195TR1 Welded Steel Tubes For Specified Room Temperature Properties

MOQ:	1 Ton
Price:	Negotiable
Standard Packaging:	In bundles or in wooden boxes.
Delivery Period:	20-40days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	60000 Ton/Tons per Year

Details Information

Product Description

Detail Information

Place of Origin

Zhejiang/China

Brand Name

TORICH

Certification

ISO8001 ISO14001 TS16949

Model Number

EN10217-1

Section Shape:

Round,Round/Square/Rectangular/Oval.etc

Secondary Or Not:

Non-secondary

Technique:

ERW,Extruded

Thickness:

0.4 - 50 Mm

Application:

Specified Room Temperature Properties

Surface Treatment:

Galvanized

Alloy Or Not:

Is Alloy

Standard:

ASTM,GB,JIS,BS

Grade:

P195TR1 P195TR2 P235TR1 P235TR2 P265TR1 P265TR2

Standard2:

EN10217-1

Special Pipe:

Thick Wall Pipe

Length:

1-12m/as Customers' Requests

Surface:

Galvanized Coated

Outer Diameter(round):

20 - 677 Mm

Product Name:

Galvanized Round Pipe

Usage:

Specified Room Temperature Properties

Product Description

EN10217-1 P195TR1 Welded Steel Tubes For Specified Room Temperature Properties 0

EN10217-1 P195TR1, P195TR2, P235TR1, P235TR2, P265TR1 Welded Steel Tubes For Specified Room Temperature Properties

Material Specification

EN10217-1 is a European standard that specifies the requirements for welded steel tubes intended for pressure purposes. These tubes are designed to operate at room temperature and are commonly used in various industrial applications. The standard covers several steel grades, including P195TR1, P195TR2, P235TR1, P235TR2, and P265TR1, each with specific properties to meet different requirements.

Key Features

Welded Construction: These tubes are manufactured using a welding process, ensuring a strong and durable seam.
Room Temperature Properties: Designed to perform optimally at room temperature, making them suitable for a wide range of applications.
Versatile Applications: Used in industries such as construction, automotive, and energy for transporting fluids and gases.
Compliance with European Standards: Ensures quality and reliability in various applications.

Chemical Composition

The chemical composition of these steel grades is crucial for their performance. Below is a table presenting the typical chemical composition for each grade:

Element	P195TR1	P195TR2	P235TR1	P235TR2	P265TR1
Carbon (C)	≤ 0.20%	≤ 0.20%	≤ 0.16%	≤ 0.16%	≤ 0.20%
Manganese (Mn)	≤ 1.40%	≤ 1.40%	≤ 1.20%	≤ 1.20%	≤ 1.40%
Phosphorus (P)	≤ 0.025%	≤ 0.025%	≤ 0.025%	≤ 0.025%	≤ 0.025%
Sulfur (S)	≤ 0.020%	≤ 0.020%	≤ 0.020%	≤ 0.020%	≤ 0.020%
Silicon (Si)	≤ 0.40%	≤ 0.40%	≤ 0.35%	≤ 0.35%	≤ 0.40%

Mechanical Properties

The mechanical properties of these steel grades are essential for determining their suitability for specific applications. The table below outlines the typical mechanical properties:

Property	P195TR1	P195TR2	P235TR1	P235TR2	P265TR1
Yield Strength (MPa)	≥ 195	≥ 195	≥ 235	≥ 235	≥ 265
Tensile Strength (MPa)	320-440	320-440	360-500	360-500	410-570
Elongation (%)	≥ 24	≥ 24	≥ 25	≥ 25	≥ 22

Steel Grade

The steel grades covered under EN10217-1 are specifically designed to meet the demands of various applications. Each grade offers a balance of strength, ductility, and weldability, making them suitable for different industrial needs.

Application

EN10217-1 welded steel tubes are used in a variety of applications, including:

Construction: Structural components and frameworks.
Automotive: Exhaust systems and other components.
Energy: Pipelines for transporting fluids and gases.
Manufacturing: Machinery and equipment parts.

Possible Alternative Grades

While EN10217-1 provides a range of steel grades, alternative grades may be considered depending on specific requirements. Some possible alternatives include:

EN10216-1: Seamless steel tubes for pressure purposes.
ASTM A53: Standard specification for pipe, steel, black and hot-dipped, zinc-coated, welded, and seamless.
API 5L: Specification for line pipe, suitable for conveying gas, water, and oil.

EN10217-1 P195TR1 Welded Steel Tubes For Specified Room Temperature Properties 1

EN10217-1 P195TR1 Welded Steel Tubes For Specified Room Temperature Properties 2

EN10217-1 P195TR1 Welded Steel Tubes For Specified Room Temperature Properties 4

EN10217-1 P195TR1 Welded Steel Tubes For Specified Room Temperature Properties 6

TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and

trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and

credibility among domestic and foreign customers.

The company's production plant covers an area of over 10,000 square meters, with an annual production

capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.

The group holds shares in more than ten domestic production entities, whose main products include

seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.

Over the past 30 years, the company has been gradually developing new technologies and materials to meet

the growing needs of customers and various diversified needs, exporting to more than 56 countries and still

increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
