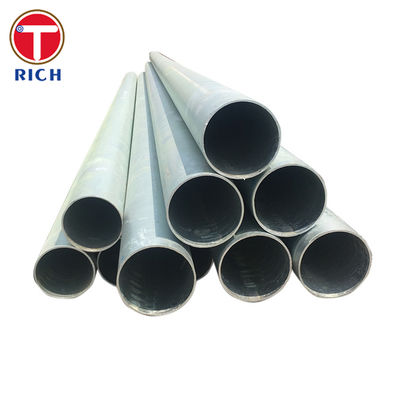

EN10296-1 E195 Welded Circular Steel Tubes For Mechanical

MOQ:	1 Ton
Price:	Negotiable
Standard Packaging:	In bundles or in wooden boxes.
Delivery Period:	20-40days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	60000 Ton/Tons per Year

Details Information

Product Description

Detail Information

Place of Origin

Zhejiang/China

Brand Name

TORICH

Certification

ISO8001 ISO14001 TS16949

Model Number

EN10296-1

Section Shape:

Round/Square/Rectangular/Oval.etc

Secondary Or Not:

Non-secondary

Technique:

Thickness:

0.4 - 50 Mm

Application:

Mechanical

Surface Treatment:

Galvanized

Alloy Or Not:

Non-alloy

Standard:

ASTM,GB,JIS

Grade:

E155 E195 E235 E275 E355

Standard2:

EN10296-1

Special Pipe:

Precision Tube

Length:

1-12m/as Customers' Requests

Surface:

Galvanized Coated

Outer Diameter(round):

20 - 677 Mm

Product Name:

Galvanized Round Pipe

Product Description

EN10296-1 E195 Welded Circular Steel Tubes For Mechanical 0

EN10296-1 E155 E195 E235 E275 E355 Welded Circular Steel Tubes

Introduction

EN10296-1 is a European standard that specifies the technical delivery conditions for welded circular steel tubes used in mechanical applications. These tubes are essential components in various industries due to their versatility, strength, and durability. The standard covers several steel grades, including E155, E195, E235, E275, and E355, each offering distinct properties to suit different applications.

Material Specification

EN10296-1 welded circular steel tubes are manufactured from non-alloy and alloy steels. These tubes are primarily used for mechanical and general engineering purposes. The specification ensures that the tubes meet specific requirements for dimensions, tolerances, and mechanical properties, making them suitable for a wide range of applications.

Key Features

Versatility: Suitable for various mechanical and structural applications.
Strength: High tensile strength and durability.
Corrosion Resistance: Enhanced resistance to environmental factors.
Dimensional Accuracy: Manufactured to precise dimensions and tolerances.
Cost-Effective: Economical choice for many engineering applications.

Chemical Composition

The chemical composition of EN10296-1 steel grades is crucial for determining their mechanical properties and suitability for specific applications. Below is a table presenting the typical chemical composition for each grade:

Element (%)	E155	E195	E235	E275	E355
C (max)	0.17	0.20	0.17	0.21	0.22
Si (max)	0.35	0.35	0.35	0.35	0.55
Mn (max)	1.20	1.40	1.20	1.50	1.60
P (max)	0.045	0.045	0.045	0.045	0.045
S (max)	0.045	0.045	0.045	0.045	0.045

Mechanical Properties

The mechanical properties of these steel grades determine their performance under different conditions. The table below outlines the typical mechanical properties for each grade:

Property	E155	E195	E235	E275	E355
Yield Strength (MPa)	≥155	≥195	≥235	≥275	≥355
Tensile Strength (MPa)	290-430	320-520	340-480	410-560	490-630
Elongation (%)	≥20	≥20	≥20	≥20	≥20

Steel Grade

The EN10296-1 standard includes several steel grades, each designed for specific applications. The grades are differentiated by their mechanical properties and chemical composition, allowing engineers to select the most appropriate material for their needs.

Application

EN10296-1 welded circular steel tubes are used in a variety of applications, including:

Automotive Industry: Components such as exhaust systems and structural parts.
Construction: Structural supports and frameworks.
Machinery: Parts and components for various machines.
Furniture: Tubular frames and supports.
General Engineering: Applications requiring strong and durable materials.

Possible Alternative Grades

For applications where EN10296-1 grades may not be suitable, alternative steel grades can be considered. These alternatives may offer different properties or advantages, such as improved corrosion resistance or higher strength. Some possible alternatives include:

EN10297-1: Seamless circular steel tubes for mechanical and general engineering purposes.
ASTM A513: Specification for electric-resistance-welded carbon and alloy steel mechanical tubing.
DIN 2393: Welded precision steel tubes.

EN10296-1 E195 Welded Circular Steel Tubes For Mechanical 1

EN10296-1 E195 Welded Circular Steel Tubes For Mechanical 2

EN10296-1 E195 Welded Circular Steel Tubes For Mechanical 4

EN10296-1 E195 Welded Circular Steel Tubes For Mechanical 6

TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and

trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and

credibility among domestic and foreign customers.

The company's production plant covers an area of over 10,000 square meters, with an annual production

capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.

The group holds shares in more than ten domestic production entities, whose main products include

seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.

Over the past 30 years, the company has been gradually developing new technologies and materials to meet

the growing needs of customers and various diversified needs, exporting to more than 56 countries and still

increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
