JIS G3455 Carbon Steel Seamless Pipe For High Pressure Service

MOQ:	1 Ton
Price:	Negotiable
Standard Packaging:	In bundles or in wooden boxes.
Delivery Period:	20-40days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	60000 Ton/Tons per Year

Details Information

Product Description

Detail Information

Place of Origin

Zhejiang/China

Brand Name

TORICH

Certification

ISO8001 ISO14001 TS16949

Model Number

JIS G3455

Transportation:

Ocean,Air

Usage:

Boiler Tube

Alloy Or Not:

Is Alloy

Grade Group:

JIS G3455

End Treatment:

Cutting, Facing, Beveling, Chamfering

Surface Treatment:

Pickling, Polishing, Brushing, Etc.

Thickness:

0.8mm To 100mm

Keywords:

Seamless Pipe For Heat Exchanger Tube

Size:

Customizable

Delivery Condition:

+N, +NBK,+C,+LC,+BK,+A

Length:

Customizable

Ends:

Plain Ends, Beveled Ends, Threaded Ends

Packing:

In Bundles Or In Wooden Boxes

Material:

Steel

Product Description

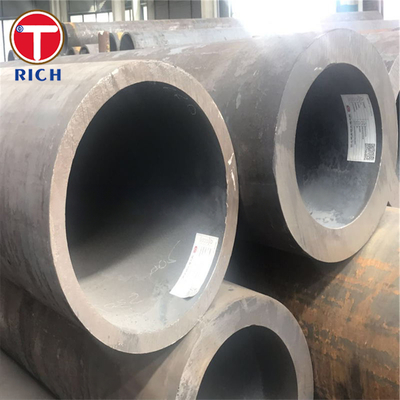

JIS G3455 Carbon Steel Seamless Pipe For High Pressure Service 0

JIS G3455 Carbon Steel Seamless Pipe for High-Pressure Service

1. Material Overview

JIS G3455 specifies seamless carbon steel pipes designed for high-pressure service at temperatures up to approximately 350 °C. These pipes are manufactured from killed steel using seamless processes, available in hot-finished or cold-finished forms.

2. Specifications

Temperature limit: up to ~350 °C.
Outer diameter (OD): from ~10.5 mm (nominal 6A / 1/8B) up to ~660 mm, with many sources citing 15 mm to 600 mm.
Wall thickness (WT): commonly from ~1 mm up to 50 mm; some suppliers indicate 2 mm–14 mm.
Length: up to about 16 000 mm.
Grades: STS 370, STS 410, STS 480, and STS 510.

3. Chemical Composition

Grade	C (max)	Si	Mn	P (max)	S (max)
STS 370	0.25%	0.10–0.35%	0.30–1.10%	0.035%	0.035%
STS 410	0.30%	0.10–0.35%	0.30–1.40%	0.035%	0.035%
STS 480	0.33%	0.10–0.35%	0.30–1.50%	0.035%	0.035%
STS 510	—	(similarly limited)	—	—	—

4. Mechanical Properties

Grade	Tensile ≥ (MPa)	Yield ≥ (MPa)	Elongation ≥ (%)
STS 370	370	216	30
STS 410	410–412	245	25
STS 480	480	275	25
STS 510	481	275	25

5. Key Features

High-pressure capabilities with excellent tensile and yield strength.
Temperature resistance certified to ~350 °C.
Available in versatile manufacturing forms and end finishes.
Rigorous quality control through straightness, surface finish, and performance testing (flattening, bending, hydrostatic or nondestructive tests).

6. Applicable Standards

JIS G3455 (Japan)—defines complete technical requirements.
Equivalent international standards: ASTM A106 / ASME SA106, DIN 17175, EN 10216-2, GB 5310, API 5L.

7. Application Areas

General Sectors: Boilers, pressure vessels, high-pressure piping in petrochemical, chemical, power generation, refinery, mechanical systems, shipbuilding, offshore, and construction.
Specific Uses: Boiler and superheater tubes in power plants, high-pressure steam and fluid pipelines in refineries, hydraulic components, and structural pressure conduits.

JIS G3455 Carbon Steel Seamless Pipe For High Pressure Service 1

JIS G3455 Carbon Steel Seamless Pipe For High Pressure Service 2

JIS G3455 Carbon Steel Seamless Pipe For High Pressure Service 4

JIS G3455 Carbon Steel Seamless Pipe For High Pressure Service 6

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
