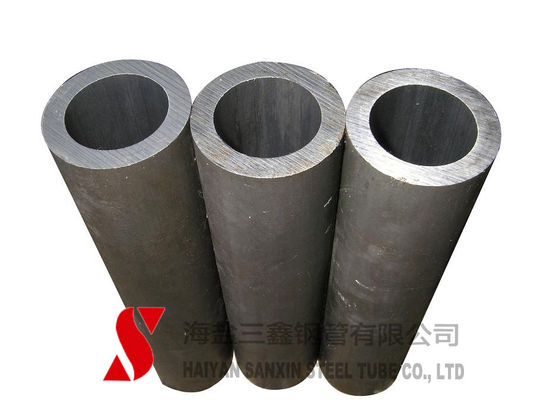

Cold Drawn Heat Exchanger Steel Tube 5 - 420mm Outer Diameter DIN Standard
-
High Light
finned copper tubing
,seamless boiler tube
-
StandardDIN
-
Standard2DIN EN 10216-1-2004
-
Grade GroupCr-Mo Alloy
-
Grade15CrMo, 12Cr1MoV, Cr5Mo, 12CrMo
-
Thickness0.5 - 50 Mm
-
Section ShapeRound
-
Outer Diameter(Round)5 - 420 Mm
-
ApplicationBoiler Pipe Vessel Equipment, Boilers , Vessel Equipment
-
TechniqueCold Drawn
-
Surface TreatmentOiled
-
Special PipePressure Purpose
-
Alloy Or NotIs Alloy
-
KeywordPressure Purposes Steel Tubes
-
Place of OriginZhejiang, China (Mainland)
-
CertificationISO 9001
-
Minimum Order Quantitynegotiable
-
Pricenegotiable
Cold Drawn Heat Exchanger Steel Tube 5 - 420mm Outer Diameter DIN Standard
EN10126-2 Seamless Steel Tubes For Pressure Purposes-Technical Delivery Conditions
EN10126-2 Seamless Steel Tubes For Pressure Purposes-Technical Delivery Conditions
Size Range:
| O.D | 5-420mm |
| W.T | 0.5-50mm |
| L | max12000mm |
| Application: | for manufacturing pipelines of boilers,vissel equipment |
Steel ,Chemical Composition & EN10216-2
| Grade | C | Si | Mn | P | S | Cr | Mo | Mpa | Mpa | L | T |
| 195GH | ≤0.13 | ≤0.35 | ≤0.70 | ≤0.025 | ≤0.020 | ≤0.30 | ≤0.08 | 320-440 | ≥195 | ≥27 | ≥25 |
| P235GH | ≤0.16 | ≤0.35 | ≤1.2 | ≤0.025 | ≤0.020 | ≤0.30 | ≤0.08 | 360-500 | ≥235 | ≥25 | ≥21 |
| P265GH | ≤0.20 | ≤0.40 | ≤1.4 | ≤0.025 | ≤0.020 | ≤0.30 | ≤0.08 | 410-570 | ≥265 | ≥23 | ≥20 |
| 20MnNb6 | ≤0.22 | 0.15-0.35 | 1.00-1.50 | ≤0.025 | ≤0.020 | 500-650 | ≥355 | ≥22 | ≥20 | ||
| 16Mo3 | 0.12-0.20 | ≤0.35 | 0.4-0.9 | ≤0.025 | ≤0.020 | ≤0.30 | 0.25-0.35 | 450-600 | ≥280 | ≥22 | ≥20 |
