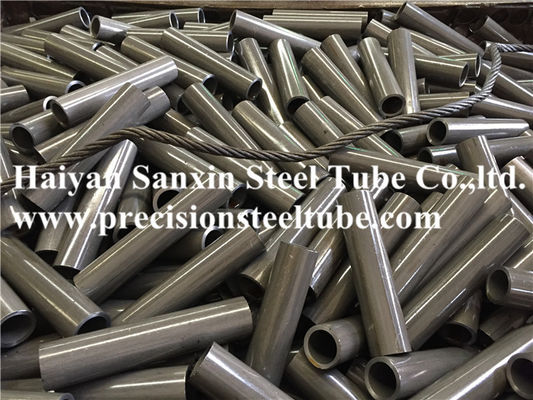

High Precision Hydraulic Tubes Pipes Small Size ST35 / ST45 Material

MOQ:	negotiable
Price:	negotiable
Standard Packaging:	sea worthy packing in bundles or boxes
Delivery Period:	30-45 days after payment
Payment Method:	T/T
Supply Capacity:	1000 tons per month

Details Information

Product Description

Detail Information

Place of Origin

Haiyan, China

Brand Name

Sanxin

Certification

ISO9001, ISO14001, TS16949

Model Number

OD:10-350mm, WT:1-30mm

Standard:

DIN2391/EN10305

Material:

Carbon Or Alloy

Shape:

Round

Size:

Outer Diameter: 10-350mm, Wall Thickness: 1-30mm

Length:

Max 12m

Delivery Condition:

BK, BKW, BKS, GBK, NBK

Highlight:

hydraulic seamless pipe

steel cylinder pipe

Product Description

Hydraulic Cylinder Steel Tube

Standard: DIN2391

Material: ST35, ST45, ST52, CK45

Size:Outer diameter: 10-350mm, Wall thickness: 1-30mm, Length: max12m

Delivery condition: BK

Surface: surface is clean and smooth, without oxide scale

Packing: sea worthy packing in bundles or boxes ,

Delivery term: shipped in 30-45 days after payment

Application: used in hydraulic cylinders, penumatic cylinders, honing, auto parts, precision purpose,etc.

Steel Grade		Chemical Composition
Symbol	Material Number	C	Si	Mn	P	S
Symbol	Material Number	Max.	Max.	Mn	Max.	Max.
ST35	1.0308	0.17	0.35	≥0.40	0.025	0.025
ST45	1.0408	0.21	0.35	≥0.40	0.025	0.025
ST52	1.058	0.22	0.55	≤1.60	0.025	0.025

Steel Grade		BK		BKW		BKS
Name	No.	Rm	A	Rm	A	Rm	ReH	A
Name	No.	Mpa	%	Mpa	%	Mpa	Mpa	%
ST35	1.0308	480	6	420	10	420	315	14
ST45	1.0408	580	5	520	8	520	375	12
ST52	1.058	640	4	580	7	580	450	10

Steel Grade		GBK		NBK
Name	No.	Rm	A	Rm	ReH	A
Name	No.	Mpa	%	Mpa	Mpa	%
ST35	1.0308	315	25	340--470	235	25
ST45	1.0408	390	21	440--570	255	21
ST52	1.058	450	22	490--630	355	22
