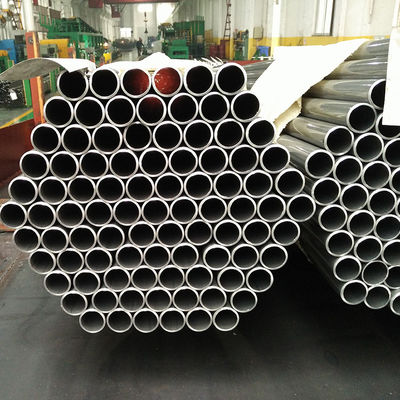

1 - 50mm Thickness Seamless Alloy Steel Pipe , Alloy Round Tube ASTM Standard

1 - 50mm Thickness Seamless Alloy Steel Pipe , Alloy Round Tube ASTM Standard

1 - 50mm Thickness Seamless Alloy Steel Pipe , Alloy Round Tube ASTM Standard
1 - 50mm Thickness Seamless Alloy Steel Pipe , Alloy Round Tube ASTM Standard 1 - 50mm Thickness Seamless Alloy Steel Pipe , Alloy Round Tube ASTM Standard 1 - 50mm Thickness Seamless Alloy Steel Pipe , Alloy Round Tube ASTM Standard

Large Image :  1 - 50mm Thickness Seamless Alloy Steel Pipe , Alloy Round Tube ASTM Standard Get Best Price

Product Details:

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Torich
Certification: CE PED
Model Number: GB/T 3625-95

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Detailed Product Description
Standard: ASTM Thickness: 1 - 50 Mm
Section Shape: Round Outer Diameter(Round): 6 - 420 Mm
Technique: Cold Drawn Special Pipe: Boiler Tubes
Keyword: Alloy Steel Stainless Steel Pipe Production: Cold Drawn
Shape: Round
High Light:

alloy steel seamless pipes

,

alloy round tube





Factory direct supply seamless alloy steel stainless steel pipe

alloy steel stainless steel pipe

Material : Titanimu Alloy Steel,

Characteristic of the material:High strength ,low density,good mechanical property ,good tenacity.good corrosion resistance .

It can be made by seamless and welded.and widely apply in power generation,Aerospace,oil and gas ,chemical processing.



Available size list:

OD 6-127mm

WT: 0.5-10mm



Cold drawn Seamless pipes with Ti and Ti alloy



grade condition Diameter/mm Wall thickness /mm
0.5 0.6 0.8 1 1.25 1.5 2 2.5 3 3.5 4 4.5
TA1,TA2,TA3,TA9,TA9-1, TA10 Annealing (M) >10-15 o o o o o o o - - - - -
>15-20 - o o o o o o o - - - -
>20-30 - o o o o o o o - - - -
>30-40 - - - - o o o o o - - -
>40-50 - - - - o o o o o o - -
>50-60 - - - - - o o o o o o -
>60-80 - - - - - - o o o o o o

Welded pipes

grade condition Diameter/mm Wall thickness /mm
0.5 0.6 0.8 1 1.25 1.5 2
TA1,TA2,TA3,TA9,TA9-1, TA10 Annealing (M) 6-10 o o o o o o
>10-15 o o o o o o
>15-30 o o o o o o o

Tolerance detail:



Torerance for OD and WT
OD Tolerance WT Tolerance
6-25 ±0.10 ±10%
>25-38 ±0.13
>38-50 ±0.15
>50-60 ±0.18
>60-80 ±0.25



Seamless and welded rolled pipe length
Type Seamless Welded rolled pipe
OD≤15 OD>15 WT
WT≤2.0 WT>2.0-4.5 0.5-0.8 >0.8-2.0
Length 500-4000 500-9000 500-6000 500-8000 500-5000
Note: Other lengths are also available.



Welded Pipe length
Type Welded pipe
WT0.5-1.25 WT>1.25-2.0 WT>2.0-2.5
Length 500-15000 500-6000 500-4000
Note: Other lengths are also available.



Mechanical porperty :



Mechanical porperty at room temperature
Alloy grade Condition Mechanical porperty at room temperature
Tensile strength /Mpa specified non-proportional extension strength /Mpa percentage elongation after fracture %
TA1 Annealing ≥240 140-310 ≥24
TA2 ≥400 275-450 ≥20
TA3 ≥500 380-550 ≥18
TA9 ≥400 275-450 ≥20
TA9-1 ≥240 140-310 ≥24
TA10 ≥460 ≥300 ≥18



Grade Tube diameter expanding rate /% min
TA1,TA9-1 22
TA2,TA9 20
TA3,TA10 17





QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness,                  Impact, Mictrostruture etc
8~ Packing and Stocking.




Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
