MOQ: | negotiable |
Price: | negotiable |
Seamless heat exchanger tube sizes

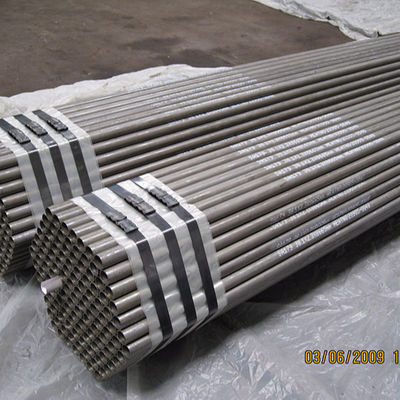

Seamless Steel Tubes SA213 U tubes for boilers and heat exchangers applications
heat exchanger tube sizes
Size Range
OD:6-127mm
WT:0.5-12mm
Steel Grade and Chemical Compositions: | |||||||
Steel Grade | C | Mn | P | S | Si | Cr | Mo |
max | max | max | max | max | min | ||
T5 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.5 | 4.0-6.0 | 0.45-0.65 |
T9 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.0-10.0 | 0.90-1.10 |
T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.0-1.50 | 0.44-0.65 |
T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 | 0.80-1.25 | 0.44-0.65 |
T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 2.65-3.35 | 0.80-1.06 |
T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 1.90-2.60 | 0.87-1.13 |
Steel Grade | Tensile Strength | Yield Strength | Elongation | Hardness.Max | ||
min.ksi [Mpa] | min.ksi [Mpa] | % | Brinell/Vickers | Rockwell | ||
T5b | 60[415] | 30[205] | 30 | 179HBW/190HV | 89HRB | |
T9 | 60[415] | 30[205] | 30 | 179HBW/190HV | 89HRB | |
T12 | 60[415] | 32[220] | 30 | 163HBW/170HV | 85HRB | |
T91 | 85[585] | 60[415] | 20 | 250HBW/265HV | 25HRC | |
T92 | 90[620] | 64[440] | 20 | 250HBW/265HV | 25HRC |
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
A: A professional steel pipes materials inventor, manufacturer and solution provider
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample of seamless heat exchanger tube sizes for free charge but need pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
