Heat Exchangers And Condensers Seamless Carbon Steel Pipe A179
  • name
  • name
  • name
  • name
  • name

Heat Exchangers And Condensers Seamless Carbon Steel Pipe A179

MOQ: negotiable
Price: negotiable
Details Information
Product Description
Detail Information
Place of Origin
Zhejiang, China (Mainland)
Certification
ISO 9001 ISO14001 TS16949
Standard:
ASTM, SA179
Standard2:
ASTM A179-1990
Grade Group:
A53-A369
Grade:
A179-C
Thickness:
2.2 - 25.4 Mm
Section Shape:
Round
Outer Diameter(Round):
12.7 - 177.8 Mm
Secondary Or Not:
Non-secondary
Application:
Boiler Pipe
Technique:
Cold Drawn
Surface Treatment:
Oil
Special Pipe:
Boiler Tubes
Alloy Or Not:
Non-alloy
Product Name:
Heat Exchangers And Condensers Seamless Carbon Steel Pipe A179
Keyword:
Carbon Steel Pipe A179
Material:
SA179
End Protector:
Plain
Length:
3-22m
MTC:
EN10204.3.2B
Highlight:

finned copper tubing

,

erw boiler tubes

Product Description



Heat Exchangers And Condensers Seamless Carbon Steel Pipe A179

water tube boiler parts

ASTM A179 Seamless Cold Drawn Low Carbon Steel Heat Exchanger Tubes and Condenser Tubes


Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger Tubes and Condenser Tubes


Applications:

  • For Boilers,
  • Superheaters,
  • Tubular Heat-Exchangers,
  • Condensers
  • Heat transfer apparatus

U bend Tubes according to Customer request



Material: Low Carbon Steel

Heat Exchangers And Condensers Seamless Carbon Steel Pipe A179



Production:  Seamless Cold Drawn

Size range: O.D.:3.2-76.2mm     W.T.:1-15mm      L: according to customer requirement.



Steel Grade and Chemical Compositions:

 C  0.06-0.18
 Mn  0.27-0.63
 P  ≤0.035
 S  ≤0.035


Mechanical Properties

Tensile Streghth:   min ksi[Mpa]  47[325]
Yield Point:          min ksi[Mpa] 26[180]
Elongation:          ≥35%
Hardness:           ≤72HRB



Heat Treatment:

Tubes are heat treated after the final cold draw pass at a temperature of 1200℉(650℃) or higher



Surface Finish:

Finish Tubes are free of scale.

We have normal heat treatment annealing with black surface.

Have bright annealing with grey and bright surface.



Mechanical Testing:

Flattening Test

Flaring Test

Flange Test

Hardness Test

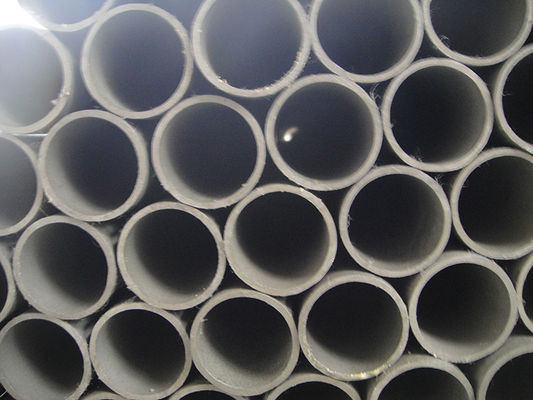

Heat Exchangers And Condensers Seamless Carbon Steel Pipe A179



.jpg








QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness,                  Impact, Mictrostruture etc
8~ Packing and Stocking.


Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample of Heat Exchangers And Condensers Seamless Carbon Steel Pipe A179 for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
