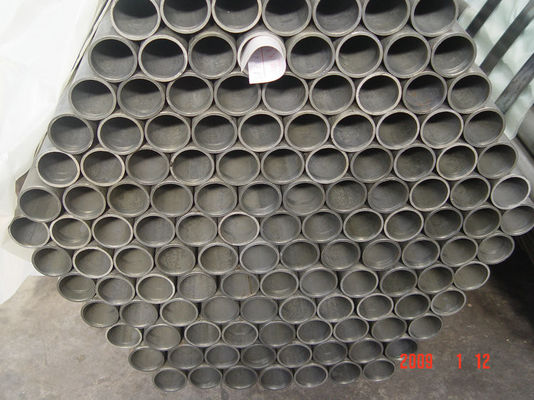

T5 / T9 ASTM A213 Tubing , Seamless ASTM A213 Pipe For Boiler / Heater

T5 / T9 ASTM A213 Tubing , Seamless ASTM A213 Pipe For Boiler / Heater

  • High Light

    erw boiler tubes

    ,

    seamless boiler tube

  • Grade Group
    A53-A369
  • Grade
    A213
  • Thickness
    0.5 - 12 Mm
  • Outer Diameter(Round)
    6 - 127 Mm
  • Application
    Boiler Pipe
  • Technique
    Cold Drawn
  • Surface Treatment
    Oil
  • Product Name
    ASTM A213 T5 Heat Exchanger Boiler Tubes
  • Keyword
    Boiler Tubes
  • Model No
    ASTM A213
  • Type
    Seamless
  • Place of Origin
    Zhejiang, China (Mainland)
  • Certification
    ISO 9001 ISO14001 TS16949
  • Minimum Order Quantity
    negotiable
  • Price
    negotiable

T5 / T9 ASTM A213 Tubing , Seamless ASTM A213 Pipe For Boiler / Heater

.jpg

ASTM A213  Tube Exchanger tubes/Tube boiler tubes


OD:6-127mm
WT:0.5-12mm

Grade: T5,T9,T11,T12,T21,T22 [T"(small-caliber tube)



SA213 long steel tubes, make to U bend tubes for boilers and heat exchangers.
With strong wood structure box packing by containers loading and shipping.

Heater tubes U TUBES with Stainless, Alloy steel grade available, Carbon Steel grade is also available.

ASTM A213  Tube Exchanger tubes/Tube boiler tubes



Steel Grade and Chemical Compositions:
Steel Grade C Mn P S Si Cr Mo
max max max max max min
T5 0.15 0.30-0.60 0.025 0.025 0.5 4.0-6.0 0.45-0.65
T9 0.15 0.30-0.60 0.025 0.025 0.25-1.00 8.0-10.0 0.90-1.10
T11 0.05-0.15 0.30-0.60 0.025 0.025 0.50-1.00 1.0-1.50 0.44-0.65
T12 0.05-0.15 0.30-0.61 0.025 0.025 0.50 0.80-1.25 0.44-0.65
T21 0.05-0.15 0.30-0.60 0.025 0.025 0.50-1.00 2.65-3.35 0.80-1.06
T22 0.05-0.15 0.30-0.60 0.025 0.025 0.50 1.90-2.60 0.87-1.13



Steel Grade Tensile Strength Yield Strength Elongation Hardness.Max
min.ksi [Mpa] min.ksi [Mpa] % Brinell/Vickers Rockwell
T5b 60[415] 30[205] 30 179HBW/190HV 89HRB
T9 60[415] 30[205] 30 179HBW/190HV 89HRB
T12 60[415] 32[220] 30 163HBW/170HV 85HRB
T91 85[585] 60[415] 20 250HBW/265HV 25HRC
T92 90[620] 64[440] 20 250HBW/265HV 25HRC





Acknowledge:



Gauge-Inch-mm Gauge 12 14 15 16




ASTM A213  Tube Exchanger tubes/Tube boiler tubes

QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness,                  Impact, Mictrostruture etc
8~ Packing and Stocking.




Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample of ASTM A213  Tube Exchanger tubes/Tube boiler tubes for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
