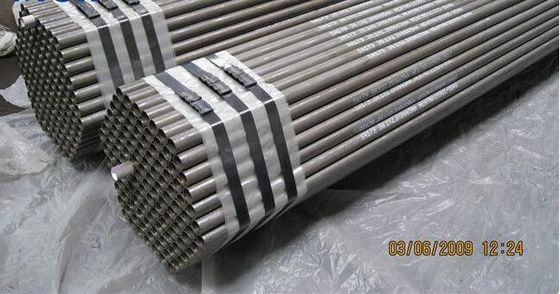

Carbon Steel / Cold Drawing And Cold Rolling Sa210 A1 Seamless Boiler Tube

Carbon Steel / Cold Drawing And Cold Rolling Sa210 A1 Seamless Boiler Tube

  • High Light

    finned copper tubing

    ,

    erw boiler tubes

  • Standard
    ASTM, SA192
  • Standard2
    ASTM A210-1996
  • Grade Group
    A53-A369
  • Grade
    A210
  • Thickness
    2.2 - 25.4 Mm
  • Section Shape
    Round
  • Outer Diameter(Round)
    12.7 - 177.8 Mm
  • Secondary Or Not
    Non-secondary
  • Application
    Boiler Pipe
  • Technique
    Cold Drawn
  • Surface Treatment
    Oil
  • Special Pipe
    Boiler Tubes
  • Alloy Or Not
    Non-alloy
  • Product Name
    Cold Drawing Sa210 A1 Seamless Boiler Tube
  • Keywords
    Boiler Tube
  • Material
    SA192
  • Place of Origin
    Zhejiang, China (Mainland)
  • Certification
    ISO 9001 ISO14001 TS16949
  • Minimum Order Quantity
    negotiable
  • Price
    negotiable

Carbon Steel / Cold Drawing And Cold Rolling Sa210 A1 Seamless Boiler Tube

seamless boiler steel tube



Carbon steel / cold drawing and cold rolling sa210 a1 seamless boiler tube



ASTM A210 Seamless medium carbon steel boiler and superheater tubes


Applications: for Boilers,Superheaters,Steam linepipes of boilers


Size range: O.D.:12.7-127mm     W.T.:1-15mm      L: according to customer requirement



 Carbon steel / cold drawing and cold rolling sa210 a1 seamless boiler tube

Steel Grade and Chemical Compositions:
Grade C Mn P S Si
A-1 ≤0.27 ≤0.93 ≤0.035 ≤0.035 ≥0.10
C ≤0.35 0.29-1.06 ≤0.035 ≤0.035 ≥0.10


Mechanical properties:

Grade Yield Point
Mpa(ksi)
Tensile Strength
Mpa(ksi)
Elongation
A-1 ≥255(37) ≥415(60) ≥30%
C ≥275(40) ≥485(70) ≥30%



Tolerance for OD and WT(SA-450/SA-450M)
OD in(mm) + - WT in(mm) + -
<1''(25.4) 0.10  0.10  ≤1.1/2''(38.1) 20% 0
1''~1.1''(25.4~38.1) 0.15  0.15  >1.1/2''(38.2) 22% 0
>1.1/2''~<2''(38.1~50.8 0.20  0.20
2''~<2.1/2''(50.8~63.5) 0.25  0.25
2.1/2''~<3''(63.5~76.2) 0.30  0.30
3''~<4''(76.2~101.6) 0.38  0.38
4''~<7.1/2''(101.6~190.5) 0.38  0.64
>7.1/2~9''(190.5~228.6) 0.38  1.14



Surface Condition:

Pickling or shot blasting, Passivated, Black Phosphating.



Tests and Inspection:

Flattening Test

Flaring Test

Hardness Test

Hydrostatic or Nondestruction Electric Test ( Eddy Current and Ultrasonic Testing)



 Carbon steel / cold drawing and cold rolling sa210 a1 seamless boiler tub



QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness,                  Impact, Mictrostruture etc
8~ Packing and Stocking.




Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample of Carbon steel / cold drawing and cold rolling sa210 a1 seamless boiler tube

 for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
