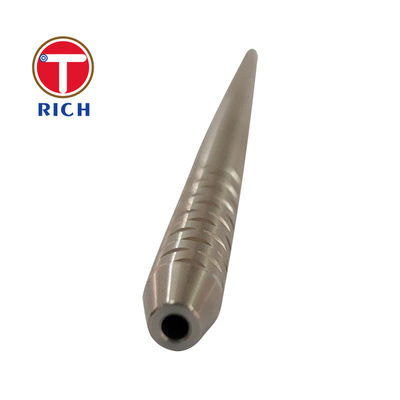

Aluminum Cnc Machining 6061 6063 For Putter

Aluminum Cnc Machining 6061 6063 For Putter

Aluminum Cnc Machining 6061 6063 For Putter
Aluminum Cnc Machining 6061 6063 For Putter Aluminum Cnc Machining 6061 6063 For Putter

Large Image :  Aluminum Cnc Machining 6061 6063 For Putter Get Best Price

Product Details:

Place of Origin: Zhejiang China
Brand Name: TORICH
Certification: ISO 9001 TS16949
Model Number: 2022042802

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pc
Price: negotiation
Packaging Details: In pallets or in wooden boxes
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pcs Per Month
Detailed Product Description
Product Name: Aluminum Cnc Machining Type: Turning
Material: 6061 6063 Keyword: Aluminum Cnc Machining
Oem: Available,Offered,Accept Cnc Machining Or Not: CNC Machining
Surface Treatment: Anodize,anodizing,polishing Tolerance: 0.01-0.05mm Or Customized
Process: According To The Workpiece And Precision
High Light:

Putter Aluminum Cnc Machining

,

Aluminum Cnc Machining 6061

,

6063 Putter Cnc Machining

Aluminum Cnc Machining 6061 6063 For Putter

Product description:

Product name: Aluminum Cnc Machining 6061 6063 For Putter
Craft: Aluminum hot forging + precision machining
Material: Al6061-T6
Material Standard: GB,ASTM,AISI,DIN,BS,JIS,NF
Forged weight: 1.37kg
Forging Dimension Tolerance: CT6 grade
Forging surface roughness: Ra6.4 – 3.2
Machined Surface Roughness: Ra0.8-1.6
Supported drawing file formats: ProE (.igs , .stp) , Auto CAD , PDF, Jpeg, Jpg, Png
Heat treatment: T5/T6
Processing Equipment 4-axis machining center, 80 CNC machine, inclined bed, etc.
surface treatment spray, oxidation
Measuring tools: Three coordinates, vernier caliper, micrometer, depth caliper, thread gauge, height gauge, inner diameter gauge, outer diameter gauge
test: Three inspections: first inspection, patrol inspection, final inspection
Inspection Report: Al6061-T6 forging material report, dimensional inspection report, oxidation report can be provided





Products Display


Aluminum Cnc Machining 6061 6063 For Putter 0Aluminum Cnc Machining 6061 6063 For Putter 1




Products Appliction of  parts produced by Aluminum Cnc Machining  is that

Aluminum lever fittings are mainly used in Siemens Energy High Voltage Switch Division. The aluminum base series of automobile shock absorption system are mainly used in the secondary sales market of BMW and Mercedes-Benz in the United States. The main customer is Siemens High Voltage Energy (Global), and the products are basically exported to Europe, America and Japan with high quality requirements.



Aluminum Cnc Machining 6061 6063 For Putter 2



Feature of  Aluminum Cnc Machining:

First, the characteristics of aluminum profile processing center
1) Longitudinal stroke
In order to adapt to the characteristics of slender parts of aluminum profiles, the work surfaces of CNC machining centers for aluminum profiles are mostly narrow and long shapes. Width not exceeding 500mm; length 6500mm to 7000mm to accommodate typical 6 meter profile processing. Pneumatic clamps and positioning backing plates are standard on the worktable, which is convenient for workpiece positioning and fixing.
There are three kinds of structure layout of aluminum profile machining center: moving column type, gantry type and moving beam type. The three layouts have their own advantages and disadvantages in the performance indicators such as machine rigidity, stable operation and convenient operation.
The machining center equipped with the A axis (rotating around the X axis) can complete the processing of three sides of the aluminum profile in one clamping.

2) High spindle speed
The maximum speed of the spindle of the general machining center is generally below 8000rpm; while the maximum speed of the spindle of the aluminum profile machining center can reach or even exceed 18000rpm. Due to the high speed, an integrated permanent magnet synchronous motorized spindle is generally used, which integrates functions such as tool clamping, air blowing, and circulating water cooling.

Production Equipment

Aluminum Cnc Machining 6061 6063 For Putter 3

Aluminum Cnc Machining 6061 6063 For Putter 4

Aluminum Cnc Machining 6061 6063 For Putter 5

Aluminum Cnc Machining 6061 6063 For Putter 6




Why choose TORICH   ?

1.Product available

2.Varisous specifications

3.Non-standard customization

4.Drawing and samples

5,Integrity Management

6,Quick delivery time

FAQ
1. Are you manufacturer or trader ?
TORICH is manufacturer based trading company.

2. How can we get samples ?
Ready to ship samples can be delivered within 3 working days, developing samples need to be confirmed with our engineer and sales team.

3.What is your packing method?

Safty and strong packing suitable for sea shipping and air shipping.

4.What is your payment terms?
30% deposit, the balance 70% before shipping.
