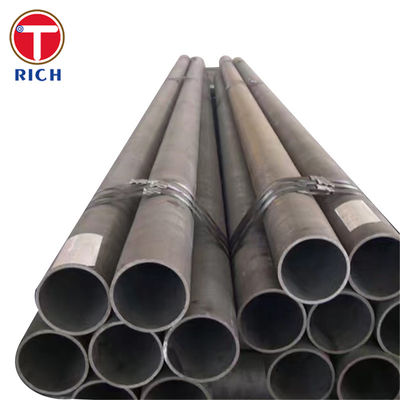

GB/T 24591 Seamless Steel Tubes For High Pressure Feedwater Heater

Products

Seamless Cold Drawn Steel Tube

Automotive Steel Pipe

Mr. Richard SHEN

admin@steel-tubes.com

86-574-88255925

Contact Now

GB/T 24591 Seamless Steel Tubes For High Pressure Feedwater Heater

MOQ:	1 Ton
Price:	Negotiable
Standard Packaging:	In bundles or in wooden boxes.
Delivery Period:	20-40days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	60000 Ton/Tons per Year

Details Information

Product Description

Detail Information

Place of Origin

Zhejiang/China

Brand Name

TORICH

Certification

ISO8001 ISO14001 TS16949

Model Number

GB/T 24591

Application:

Structure Pipe

Technique:

Hot Rolled,Cold Drawn,Cold Rolled

Thickness:

0.6 - 100 Mm

Standard:

ASTM,DIN,JIS,GB,API

Alloy Or Not:

Non-alloy

Section Shape:

Round

Standard2:

GB/T 24591

Secondary Or Not:

Non-secondary

Outer Diameter(round):

10.3 - 813 Mm

Special Pipe:

Boiler Tubes

Grade:

20GJ (SA556B2, SA556C2, P235GH); 20MnGJ (SA556B2, SA556C2, P235GH

Material:

Carbon Steel Tube

Type:

Seamless,Heat Exchanger Tube

Length:

6 Meters Or As Customers Request

Condition:

Product Description

GB/T 24591 Seamless Steel Tubes For High Pressure Feedwater Heater 0

GB/T 24591 Seamless Steel Tubes For High Pressure Feedwater Heater

High-pressure feedwater heaters are crucial components in power generation plants, enhancing the efficiency of the steam cycle. GB/T 24591 provides the standard for seamless steel tubes used specifically for these applications in China. This article explores the material properties, specifications, key features, chemical composition, mechanical properties, steel grades, application, and possible alternative grades specified under GB/T 24591.

Material

Seamless steel tubes governed by the GB/T 24591 standard are typically made from carbon steel and alloy steel, designed to endure high pressure and temperature conditions characteristic of feedwater heaters. These materials ensure structural integrity and longevity in demanding environments.

Specification

Seamless steel tubes under the GB/T 24591 standard exhibit the following specifications:

Outside Diameter: Ranges from 10.0 mm to 426 mm.
Wall Thickness: Ranges from 1.0 mm to 100 mm.
Length: Customizable as per requirements, extending up to 12 meters.
Process: Hot rolled or cold drawn, depending on size and desired surface finish.

Key Features

High Temperature Resistance: Capable of performing efficiently under extreme heat conditions.
High Pressure Endurance: Designed to withstand significant internal pressures.
Corrosion Resistance: A quality particularly important given the exposure to water and steam, often with additives.
Durability: Ensures long service life and reliability.
Precision: Tight dimensional tolerances and smooth surface finish.

Chemical Composition

The chemical composition of these steel tubes affects their mechanical properties and performance. Below is a table detailing the standard elements and their typical percentage ranges.

Element	Typical Range (%)
Carbon (C)	0.10 - 0.30
Silicon (Si)	0.10 - 0.50
Manganese (Mn)	0.30 - 1.00
Phosphorus (P)	≤ 0.025
Sulfur (S)	≤ 0.015
Chromium (Cr)	0.30 - 1.25
Nickel (Ni)	0.30 - 1.00
Molybdenum (Mo)	0.10 - 0.25

Mechanical Properties

Mechanical properties dictate the performance of the tubes under stress. Below is a table summarizing the key mechanical properties.

Property	Range
Tensile Strength	415 - 880 MPa
Yield Strength	205 - 295 MPa
Elongation (%)	≥ 20%
Hardness	≤ 85 HRB (Rockwell B Scale)

Steel Grade

GB/T 24591 includes several grades, each tailored to specific performance needs. Common grades used include:

20G
15MoG
12Cr1MoVG

These grades are selected based on the balance of toughness, strength, and temperature thresholds required for specific applications.

Application

Seamless steel tubes outlined in GB/T 24591 are primarily used in high-pressure feedwater heaters to:

Improve thermal efficiency in power plants.
Preheat feedwater before it enters the steam generator.
Reduce fuel consumption by recycling heat within the system.

Possible Alternative Grades

When GB/T 24591 grades are unavailable or unsuitable, the following alternative grades may be considered, subject to compatibility and regulatory approvals:

ASTM A192
EN 10216-2 (P235GH, P265GH)
JIS G3461

GB/T 24591 Seamless Steel Tubes For High Pressure Feedwater Heater 1

GB/T 24591 Seamless Steel Tubes For High Pressure Feedwater Heater 2

GB/T 24591 Seamless Steel Tubes For High Pressure Feedwater Heater 4

GB/T 24591 Seamless Steel Tubes For High Pressure Feedwater Heater 6

TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and

trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and

credibility among domestic and foreign customers.

The company's production plant covers an area of over 10,000 square meters, with an annual production

capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.

The group holds shares in more than ten domestic production entities, whose main products include

seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.

Over the past 30 years, the company has been gradually developing new technologies and materials to meet

the growing needs of customers and various diversified needs, exporting to more than 56 countries and still

increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
