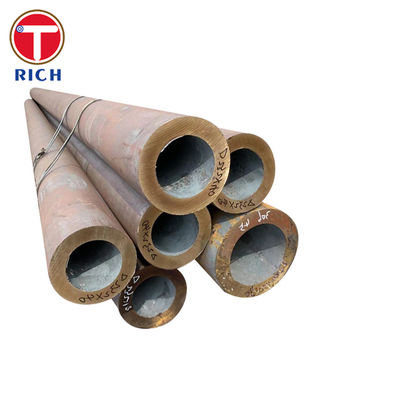

ASTM A209 Alloy Steel Boiler Tube Seamless Carbon- Molybdenum Alloy-Steel Tube

MOQ:	1 Ton
Price:	Negotiable
Standard Packaging:	In bundles or in wooden boxes.
Delivery Period:	20-40days
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	60000 Ton/Tons per Year

Details Information

Product Description

Detail Information

Place of Origin

Zhejiang/China

Brand Name

TORICH

Certification

ISO8001 ISO14001 TS16949

Model Number

ASTM A209

Application:

Boilers And Heat Exchangers

Technique:

Hot Rolled,Cold Drawn,Cold Rolled

Thickness:

1-100 Mm

Standard:

ASTM,DIN,JIS,GB,API

Alloy Or Not:

Is Alloy

Section Shape:

Round

Standard2:

ASTM A209

Secondary Or Not:

Non-secondary

Outer Diameter(round):

6-630 Mm

Grade:

T1 T1a T1b

Material:

Stainless Steel

Product Name:

304 316 304H Stainless Steel Heat Exchanger And Boiler Tubes

Type:

Seamless,Heat Exchanger Tube

Length:

6 Meters Or As Customers Request

Condition:

Product Description

ASTM A209 Alloy Steel Boiler Tube Seamless Carbon- Molybdenum Alloy-Steel Tube 0

ASTM A209 T1 T1a T1b Alloy Steel Boiler Tube Seamless Carbon-Molybdenum Alloy-Steel Tube

Introduction

ASTM A209 specification covers seamless carbon-molybdenum alloy-steel boiler and superheater tubes such as grades T1, T1a, and T1b. These tubes are commonly utilized to withstand high-temperature services, primarily in the energy and petrochemical industries, due to their superior heat-resistant properties and high-temperature strength.

Material

ASTM A209 T1, T1a, and T1b tubes are seamless alloy steel tubes containing carbon and molybdenum as the primary alloying elements, ensuring adequate strength and durable performance under extreme temperatures and pressures encountered in boiler and superheater installations.

Specification

Standard: ASTM A209
Grades: T1, T1a, T1b
Manufacturing Process: Seamless manufacturing method
Heat Treatment: Tubes shall be heat-treated and normalized

Key Features

Excellent heat-resistance capabilities
Superior strength and hardness at high temperatures
Resistance to corrosion and oxidation in elevated-temperature environments
High level of dimensional accuracy and stability
Smooth surface finish suitable for heat-transfer applications
Good weldability and ease of forming and machining

Chemical Composition

Grade	C (%)	Mn (%)	P (%) max	S (%) max	Si (%)	Mo (%)
T1	0.10–0.20	0.30–0.80	0.025	0.025	0.10–0.50	0.44–0.65
T1a	0.15–0.25	0.30–0.80	0.025	0.025	0.10–0.50	0.44–0.65
T1b	0.14 Max	0.30–0.80	0.025	0.025	0.10–0.50	0.44–0.65

Mechanical Properties

Grade	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness (HRB)
T1	≥415	≥205	≥30	≤85
T1a	≥415	≥220	≥30	≤85
T1b	≥380	≥205	≥30	≤85

Similar Standards and Steel Grades

ASTM	EN/DIN	GOST	JIS	GB
A209 T1	16Mo3(1.5415)	12CrMo195(12ХМ)	STBA12(15Mo3)	15MoG(15Mo)
A209 T1a	15Mo3(1.5415)	12CrMo195(12ХМ)	STBA12(15Mo3)	15MoG(15Mo)
A209 T1b	15Mo3(1.5415)	12CrMo195(12ХМ)	STBA12(15Mo3)	15MoG(15Mo)

Application

ASTM A209 T1, T1a, and T1b seamless tubes are prominently used in high-temperature environments and high-pressure services. Typical applications include:

Manufacture of boilers and superheaters in power plants
Heat exchangers in petrochemical industries
Steam pipelines and pressure vessels
Heat-transfer equipment operating at elevated temperatures
Components requiring excellent oxidation and heat-resistance properties in industries like oil, gas, chemicals, and power generation.

ASTM A209 Alloy Steel Boiler Tube Seamless Carbon- Molybdenum Alloy-Steel Tube 1

ASTM A209 Alloy Steel Boiler Tube Seamless Carbon- Molybdenum Alloy-Steel Tube 2

ASTM A209 Alloy Steel Boiler Tube Seamless Carbon- Molybdenum Alloy-Steel Tube 4

ASTM A209 Alloy Steel Boiler Tube Seamless Carbon- Molybdenum Alloy-Steel Tube 6

TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and

trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and

credibility among domestic and foreign customers.

The company's production plant covers an area of over 10,000 square meters, with an annual production

capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.

The group holds shares in more than ten domestic production entities, whose main products include

seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.

Over the past 30 years, the company has been gradually developing new technologies and materials to meet

the growing needs of customers and various diversified needs, exporting to more than 56 countries and still

increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
